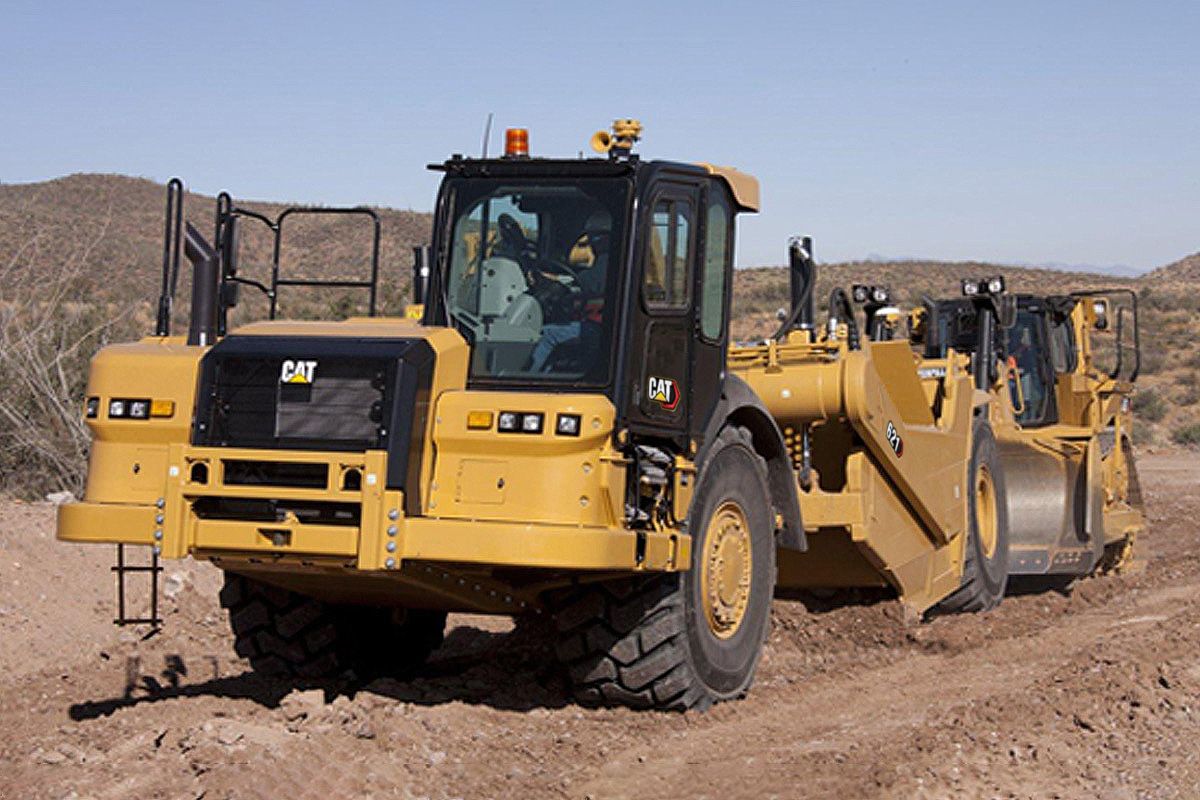

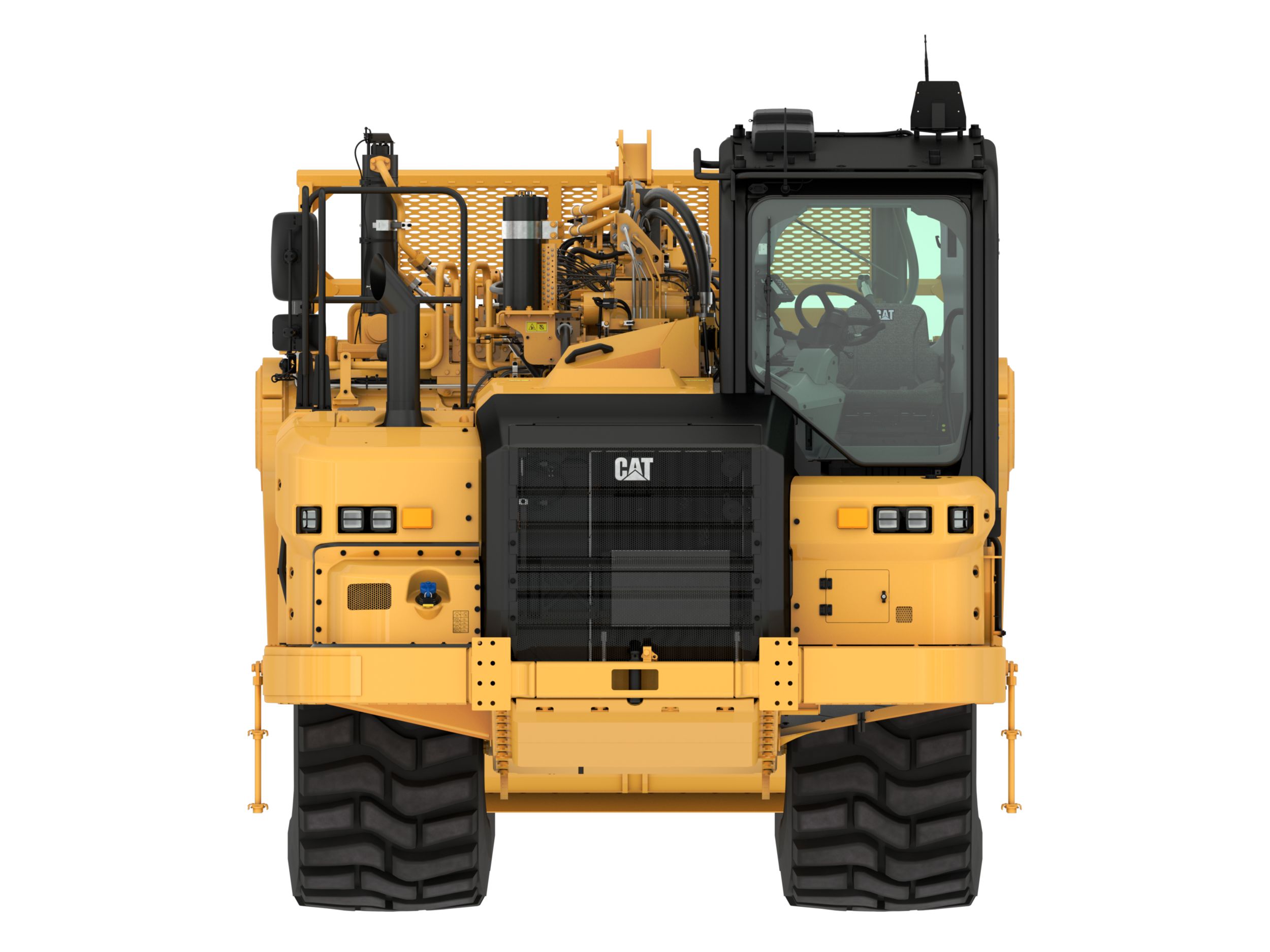

621 Wheel Tractor-Scraper

Open Bowl Scrapers
621
621 Wheel Tractor Scraper
621 Wheel Tractor Scraper
621 Wheel Tractor Scraper
621 Wheel Tractor Scraper
621
621 Wheel Tractor Scraper
621 Wheel Tractor Scraper
621 Wheel Tractor Scraper
621 Wheel Tractor Scraper
REDFINING YOUR PROFIT POTENTIAL

Our wheel tractor-scrapers have long been considered the basic method of moving volumes of material, and the Cat® 621 Wheel Tractor-Scraper is no exception. Known for its ability to be push-loaded and high travel speeds, it’s always an earthmover’s first tool of choice when working in challenging load areas. With an open bowl and a single engine, this machine is designed to handle a wide range of material types ranging from sand to ripped rock 609.6 mm (24 ") or less in size.

EXECUTE EFFICIENCY
BE MORE PRODUCTIVE
  • Up to 8% improvement in productivity.
  • Advanced Productivity Electronic Control System (APECS) allows
    the engine and transmission to communicate on a high level. This communication allows the machine to better utilize the power
    and torque the engine is producing. The net result is moving more
    material.
  • Use Ground Speed Control to set the desired top speed and the
    machine will find the gear that works best for the engine and the
    transmission, providing a lower fuel burn.
  • The Machine Speed Limit feature replaces Top Gear Selection.
  • Auto-Stall assists in quickly bringing the transmission to an
    operating temperature at start-up when the machine is working in a
    cold climate region.
  • Boost productivity with the Payload Estimator feature (optional
    attachment). Payload Estimator is an automatic feature when
    ordered with Sequence Assist.
  • Cat®Payload Estimator for scrapers is an earthmoving solution for
    optimal payload and jobsite efficiency. Payload Estimator achieves on-the-go weighing by using bowl lift cylinder pressure during the
    loaded haul segment. Payload Estimator is optimized to be used
    with Sequence Assist, which provides increased productivity with
    less operator effort.
WORK IN COMFORT
BE MORE PRODUCTIVE
WORK IN COMFORT
  • Reduce up to 14 individual operator commands per cycle with
  • Sequence Assist (optional attachment).
  • Steer with less effort using the newly designed high-pressure
    steering system.
  • Enjoy interior improvements and a more ergonomic work
    environment with a 21% larger cab than the G Series cab.
  • Intuitive, ergonomic controls keep operators focused on their work.
  • Maintain desired cab temperature with automatic temperature
    control.
DESIGNED FOR SAFETY
WORK IN COMFORT
DESIGNED FOR SAFETY
  • Get in and out of the cab easier with the new powered access
    ladder system (optional attachment).
  • Enhance an operator’s awareness of site surroundings with the
    optional Work Area Vision System (WAVS).
  • Seat belt indicator provides visual and audible alerts when the seat
    belt is not in use.
  • Advanced Cushion Hitch allows the cushion hitch to prevent end
    stroke by having the ability to predict end stroke events and manage
    the rate of dampening, resulting in reduced hitch maintenance and
    improved operator ride in rough conditions.
EASY TO OPERATE
DESIGNED FOR SAFETY
EASY TO OPERATE
  • The spacious cab features easy, intuitive controls and excellent
    visibility. The cab provides a comfortable working environment for
    all-day operation.
  • Cat Advanced Ride Management (ARM) seat suspension reduces
    end stroke movement of the load cylinder for a smoother ride.
  • Engine overspeed protection will automatically engage with no
    operator input when the machine is in eighth gear. The machine
    will assist in slowing the machine speed by canceling the throttle
    command and engaging the engine compression brake.
INTEGRATED CAT TECHNOLOGIES
EASY TO OPERATE
INTEGRATED CAT TECHNOLOGIES
  • Monitor, manage, and enhance jobsite operations.
  • Hit target grade faster and more accurately with Cat GRADE technologies. Finish jobs in fewer passes and with less operator effort, saving you time and helping to increase profit.
  • Product Link™ collects machine data that can be viewed online through web and mobile applications (optional attachment).
  • Access information anytime, anywhere with Vision Link®– use it to make informed decisions that boost productivity, lower costs, simplify maintenance, and improve safety and security on your jobsite.
  • Shorten the learning curve for inexperienced operators with Load Assist (optional attachment).
EXECUTE EFFICIENCY
INTEGRATED CAT TECHNOLOGIES
EXECUTE EFFICIENCY
  • The new tractor hydraulic on-demand fan helps assist in lower fuel consumption.
  • The Cat C13 tractor engine meets U.S. EPA Tier 4 Final or EU Stage V emission standards, contributing to lower fuel consumption.
  • Using draft-arm overflow guards diverts material away from the bowl, preventing material from getting caught between the draft arms and the bowl sides.
  • Cat Grade Control (optional attachment) intelligently ensures the machine does not cut below grade in a cut area or overfill in the fill area.
BE MORE PRODUCTIVE
BE MORE PRODUCTIVE
WORK IN COMFORT
DESIGNED FOR SAFETY
EASY TO OPERATE
INTEGRATED CAT TECHNOLOGIES
EXECUTE EFFICIENCY
+ -
General
Tires - Scraper 33.25R29**E3
Rated Load 26 127 kg (57,610 lb); 26.19 tonnes (28.81 tons)
Tires - Tractor Drive 33.25R29**E3
Engine
Engine Model - Tractor Cat C13
Note Cat C13 engine meets U.S. Environmental Protection Agency (EPA) Tier 4 Final/EU Stage IV engine emission standards.
Tractor Engine
Flywheel Power - Tractor/Scraper 304 kW (407 hp)
Cab
Exterior Sound Level The exterior sound power level for the standard machine (ISO 6393:2008) is 118 dB(A).
ROPS/FOPS Meets SAE and ISO standards
Safety Criteria Compliance Standards
Rollover Protection Structure (ROPS) ISO 3471:2008 for up to 17 084 kg (37,664 lb)
Brakes ISO 3450:1996
Reverse Alarm ISO 9533:2010
Falling Object Protective Structure (FOPS) ISO 3449:2005 Level II
Seat Belt SAE J386:JUN1985
Steering System ISO 5010:2007
+ -
General
Overall Shipping Height 4.03 m
Overall Width 3.58 m
Scraper Capacity - Heaped 18.4 m³
Fuel Tank Refill Capacity - Scraper 818 l
Width - Cut 3.14 m
Maximum Depth of Spread 540 mm
Top Speed - Loaded 53.9 km/h
180° Curb-to-Curb Turning Width 11.8 m
Scraper Capacity - Struck 13 m³
Maximum Depth of Cut 315 mm
Engine
Flywheel Power - Tractor 304 kW
Rated Engine RPM - Tractor 2000 r/min
Scraper Bowl
Scraper Capacity - Heaped 18.4 m³
Transmission
Top Speed - Loaded 53.9 km/h
Service Refill Capacities
Hydraulic System 83 l
Crankcase 30.58 l
Transmission System 93 l
Cooling System 45 l
Fuel Tank 818 l
Diesel Exhaust Fluid 30.5 l
Dimensions
Width - Overall Machine 3585 mm
Width - Tractor 3381 mm
Width - Inside of Bowl 3048 mm
Width - Outside Rear Tires 3275 mm
Height - Overall Shipping 4029 mm
Height - Top of Cab 3612 mm
Ground Clearance - Tractor 557 mm
Front of Tractor to Front Axle 3119 mm
Axle to Vertical Hitch Pin 540 mm
Height - Scraper Blade Maximum 520 mm
Wheel Base 7998 mm
Rear Axle - Rear of Machine 2898 mm
Length - Overall Machine - Standard 14015 mm
Length - Maximum (Push-Pull) 15576 mm
Width - Overall Machine - Ladder Down 3790 mm
Width - Rear Tire Centers 2290 mm
Non Push-Pull
Operating Weight - Empty 36185 kg
Overall Length 14.02 m
Push-Pull
Overall Length - With Bail Down 15.58 m
Operating Weight - Empty 36567 kg
Travel Speeds - Runout
Transmission Gear - Seventh 39.9 km/h
Transmission Gear - Fifth 21.9 km/h
Transmission Gear - First 5 km/h
Transmission Gear - Sixth 29.6 km/h
Transmission Gear - Second 8.9 km/h
Transmission Gear - Third 12.1 km/h
Transmission Gear - Fourth 16.3 km/h
Transmission Gear - Eighth 53.9 km/h
Transmission Gear - Reverse 9.2 km/h
Implement Cycle Times
Apron Raise 2.95 s
Bowl Raise 3 s
Ejector Retract 6.7 s
Bowl Lower 3.5 s
Apron Lower 3.8 s
Ejector Extend 5.2 s
Bail Lower 3.2 s
Bail Raise 1.8 s
+ -
NOTE
POWER TRAIN - TRACTOR
  • - Cat C13 engine with MEUI™
  • - Cat engine brake
  • - Electric start, 24 Volt
  • - Air cleaner, dry type with precleaner
  • - Fan, hydraulic
  • - Ground level engine shutdown
  • - Radiator, aluminum unit core, 9 fins per inch
  • - Guard, crankcase
  • - Muffler (only for less or non-regulated regions engine arrangement only)
  • - Starting aid, ether
  • - Braking system: - Primary and secondary, wet disc, hydraulic - Parking, hydraulic-released, spring-applied - Throttle lock
  • - Transmission: - 8-speed planetary power shift - ECPC control - APECS software - Programmable top gear selection - Transmission hold - Differential lock - Guard, power train - Standard tire spin reduction - Ground speed control - Machine speed limit - Differential lock protection
POWER TRAIN - SCRAPER
ELECTRICAL - TRACTOR
  • - Alternator, 150 Amp
  • - Batteries (4), 12V, 1,000 CCA, maintenance free, high output
  • - Electrical system, 24V
  • - Lighting system: - Headlights, halogen - Turn signals with hazard function, LED floodlights, (2) cutting edge (1) bowl, halogen side vision (2)
  • - Starting/charging receptacle
ELECTRICAL - SCRAPER
  • - Alarm, backup
  • - Lighting system: - Brake lights, LED - Turn signals with hazard function, LED
OPERATOR ENVIRONMENT - TRACTOR
  • - HVAC system, heat, AC, defrost
  • - Thermostat control of HVAC system
  • - Coat hook
  • - Lunchbox platform with holding strap
  • - Diagnostic connection (2)
  • - 12V power ports (2)
  • - Differential lock (1)
  • - Dome courtesy light
  • - Horn, electric
  • - T-Handle implement control
  • - Mirror, rearview
  • - Radio ready
  • - ROPS/FOPS cab, pressurized
  • - Keypad switches: - Throttle lock - Wipers/washers - Hazard lights - Retarding level select - Work lights on, off - Information mode on Messenger Display
  • - Safety tab rocker switches
  • - Seat belt, static two-piece
  • - Seat, Cat Advanced Ride Management (ARM), Cat Comfort Series 3, rotates 30 degrees
  • - Steering wheel, tilt, telescoping, padded
  • - Windows, right side emergency egress
  • - Windows, sliding
  • - Windows, laminated, zipped in
  • - Windshield wipers, front and rear windows, includes washers
  • - Door lock
  • - Messenger Display
  • - Gauges, warnings include: - Coolant temperature - Engine oil temperature - Hydraulic oil temperature - DPF temperature - Fuel level - Park brake - Implement lockout - Brake system - Regeneration required - Throttle lock - System voltage - Secondary steering - Bail down - Ejector auto - Differential lock - Apron float - Transmission hold - Cushion hitch - High beam lights - Action lamp - Engine speed, rpm - Gear selection - DEF fill levels
FLUIDS
OTHER STANDARD EQUIPMENT - TRACTOR
  • - Advanced cushion hitch
  • - Accumulators (cushion hitch) with Canadian Registration Number (CRN)
  • - Fast oil change
  • - Fenders, non-metallic
  • - Heater, engine coolant 120V
  • - Rims (2)
  • - Tow pin, front
  • - Vandalism locks
  • - Heater, engine coolant 120V
OTHER STANDARD EQUIPMENT - SCRAPER
  • - Bowl: - 18.4 m3 (24 yd3), heaped - 14.1 m3 (18.4 yd3), struck
  • - Vandalism locks
  • - Hydraulic position sensing cylinders (bowl lift and apron)
+ -
NOTE
STEERING ARRANGEMENTS
INTEGRATED TECHNOLOGIES
  • - Sequence Assist Arrangement
  • - Load Assist
  • - Cat Grade Control with Load Assist
WORK LIGHT ATTACHMENTS
AMBIENT CAPABILITY ARRANGEMENTS
  • - Cooling, high ambient HRC
  • - Cooling, low ambient HRC
  • - Cooling, high ambient LRC
  • - Cooling, low ambient LRC
OTHER ATTACHMENTS
  • - Camera arrangement - WAVS
  • - Steering lock - external
  • - Cab beacon
  • - Air horn
  • - Air horn and beacon
  • - Fender, scraper
  • - Guard, overflow
  • - Wiring group
  • - Year of manufacture plate
SERVICE INSTRUCTIONS
  • - Film arrangement - U.S. (ANSI)
  • - Film arrangement - International (ISO)
