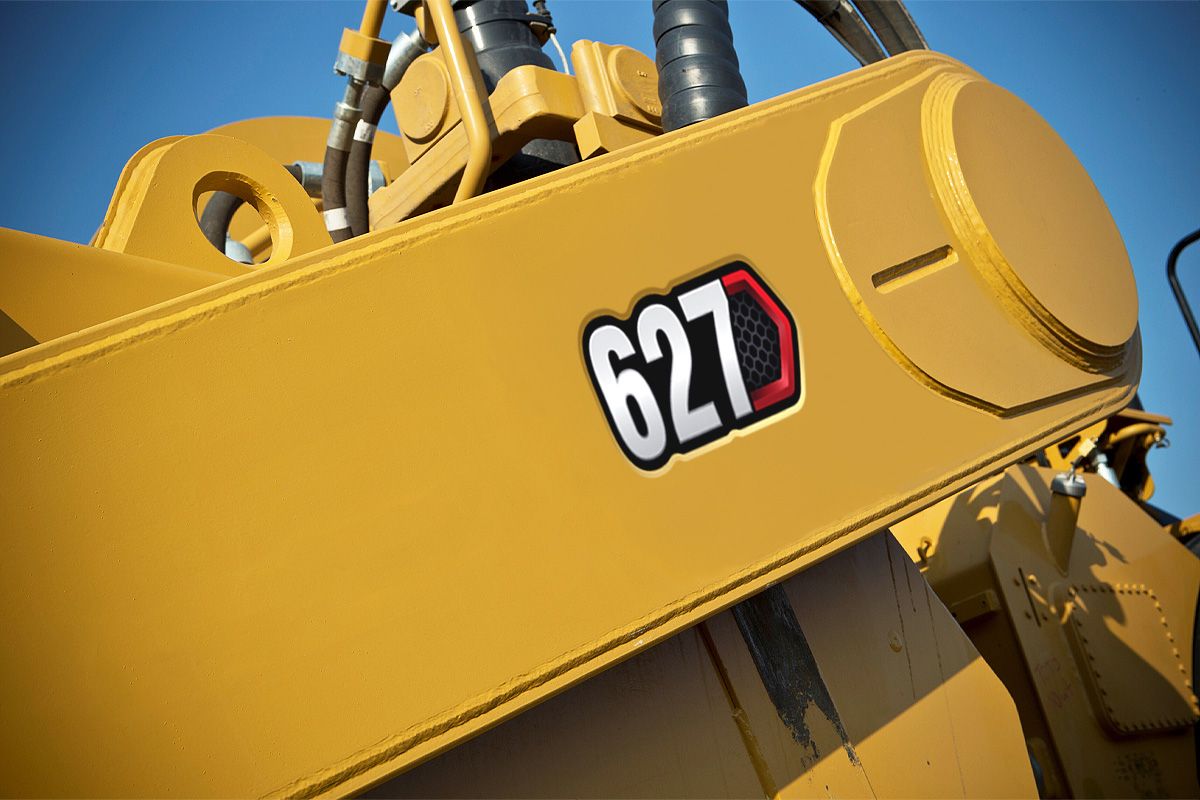

627 Open Bowl Scraper
627 Open Bowl Scraper
627 Open Bowl Scraper
627 Open Bowl Scraper
627 Open Bowl Scraper
627_0
627 Open Bowl Scraper
627 Open Bowl Scraper
627 Open Bowl Scraper
627 Open Bowl Scraper
627 Open Bowl Scraper
PROVEN PERFORMANCE

The principal choice for moving material on an earthmoving site is the Cat®
627 Wheel Tractor-Scraper. Twin-powered for high rolling resistance and steep grades, this machine is engineered to work effectively in a wide range of conditions and materialtypes. Whether traveling through sand, clay, or shot rock, it’s specifically designed to fit an earthmover’s needs for today‘s and
tomorrow’s work.

EXECUTE EFFICIENCY
BE MORE PRODUCTIVE
  • Up to 8% improvement in productivity.
  • Advanced Productivity Electronic Control System (APECS) allows
    the engine and transmission to communicate on a high level. This communication allows the machine to better utilize the power
    and torque the engine is producing. The net result is moving more
    material.
  • Machine Speed Limit feature replace stop gear selection.
  • Auto-Stall assists in quickly bringing the transmission to an
    operating temperature at start-up when the machine is working in a
    cold climate region.
  • Boost productivity with the Payload Estimator feature (optional
    attachment). Payload Estimator is an automatic feature when
    ordered with Sequence Assist.
  • Cat® Payload Estimator for scrapers is an earthmoving solution for
    optimal payload and jobsite efficiency. Payload Estimator achieves
    on-the-go weighing by using bowl lift cylinder pressure during the
    loaded haul segment. Payload Estimator is optimized to be used
    with Sequence Assist, which provides increased productivity with
    less operator effort.
WORK IN COMFORT
BE MORE PRODUCTIVE
WORK IN COMFORT
  • Reduce up to 14 individual operator commands per cycle with
    Sequence Assist (optional attachment).
  • Steer with less effort with the newly designed high-pressure
    steering system.
  • Enjoy interior improvements and a more ergonomic work
    environment with a 21% larger cab than the G Series cab.
  • Intuitive, ergonomic controls keep operators focused on their work.
  • Maintain desired cab temperature with automatic temperature
    control.
DESIGNED FOR SAFETY
WORK IN COMFORT
DESIGNED FOR SAFETY
  • Get in and out of the cab easier with the new powered access
    ladder system (optional attachment).
  • Enhance an operator’s awareness of site surroundings with the
    Work Area Vision System [WAVS (optional attachment)].
  • Differential lock engagement protection (standard) prevents
    the operator from engaging the differential lock when damage
    can occur.
  • Seat belt indicator provides visual and audible alerts when the seat belt is not in use.
EASY TO OPERATE
DESIGNED FOR SAFETY
EASY TO OPERATE
  • Control the slip of the tractor tires with tire spin reduction
    (standard).
  • The spacious cab features easy, intuitive controls and excellent
    visibility. The cab provides a comfortable working environment for
    all-day operation.
  • Equipped with advanced cushion hitch software, the Cat Advanced
    Ride Management (ARM) seat suspension reduces end stroke
    movement of the load cylinder for a smoother ride.
INTEGRATED CAT TECHNOLOGIES
EASY TO OPERATE
INTEGRATED CAT TECHNOLOGIES
  • Hit target grade faster and more accurately with Cat GRADE technologies. Finish jobs in fewer passes and with less operator effort, saving you time and helping to increase profit.
  • Product Link™ collects machine data that can be viewed online through web and mobile applications (optional attachment).
  • Access information anytime, anywhere with Vision Link®– use it to make informed decisions that productivity, lower costs,simplify maintenance, and improve safety and security on your jobsite.
  • Shorten the learning curve for inexperienced operators with Load Assist (optional attachment).
EXECUTE EFFICIENCY
INTEGRATED CAT TECHNOLOGIES
EXECUTE EFFICIENCY
  • The new tractor hydraulic on-demand fan helps assist in lower fuel consumption.
  • Use fuel economy mode to assist in fuel savings.
  • The Cat C13 tractor engine and the Cat 9.3 scraper engine emit equivalent to U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/ EU Stage III, contributing to lower fuel consumption.
  • Using draft-arm overflow guards diverts material away from the bowl, retaining material and limiting spills onto the rear of the scraper.
  • No operator input is required with engine overspeed protection.
  • Cat Grade Control (optional attachment) intelligently ensures the machine does not cut below grade in a cut area or overfill in the fill area.
BE MORE PRODUCTIVE
BE MORE PRODUCTIVE
WORK IN COMFORT
DESIGNED FOR SAFETY
EASY TO OPERATE
INTEGRATED CAT TECHNOLOGIES
EXECUTE EFFICIENCY
+ -
General
Tires - Tractor Drive 33.25R29**E3
Rated Load 26 127 kg (57,610 lb); 26.19 tonnes (28.81 tons)
Tires - Scraper 33.25R29**E3
Engine
Note (2) C9.3 engine emits equivalent to U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage III.
Engine Model - Scraper Cat C9.3
Note (1) C13 engine emits equivalent to U.S. EPA Tier 2/EU Stage II or U.S. EPA Tier 3/EU Stage III.
Engine Model - Tractor Cat C13
Tractor Engine
Flywheel Power - Tractor/Scraper 304 kW (407 hp)/216 kW (290 hp)
Cab
Exterior Sound Level The exterior sound power level for the standard machine (ISO 6393) is 116 dB(A).
ROPS/FOPS Meets ISO standards
Safety Criteria Compliance Standards
Steering System ISO 5010:2007
Falling Object Protective Structure (FOPS) ISO 3449:2005 Level II
Rollover Protection Structure (ROPS) ISO 3471:2008 for up to 17 084 kg (37,664 lb)
Seat Belt SAE J386:JUN1985
Brakes ISO 3450:2011
Reverse Alarm ISO 9533:2010
+ -
General
Scraper Capacity - Heaped 18.4 m³
Width - Cut 3.14 m
Maximum Depth of Cut 315 mm
Scraper Capacity - Struck 13 m³
Overall Shipping Height 4.03 m
Maximum Depth of Spread 540 mm
180° Curb-to-Curb Turning Width 11.8 m
Top Speed - Loaded 53.9 km/h
Overall Width 3.57 m
Fuel Tank Refill Capacity - Scraper 1272 l
Engine
Rated Engine RPM - Scraper 2150 r/min
Rated Engine RPM - Tractor 2000 r/min
Flywheel Power - Scraper 216 kW
Flywheel Power - Tractor 304 kW
Scraper Bowl
Scraper Capacity - Heaped 18.4 m³
Transmission
Top Speed - Loaded 53.9 km/h
Service Refill Capacities
Fuel Tank 1272 l
Crankcase - Scraper 28 l
Transmission System - Tractor 93 l
Hydraulic System 83 l
Cooling System - Tractor 45 l
Cooling System - Scraper 61 l
Crankcase - Tractor 30.58 l
Transmission System - Scraper 49 l
Dimensions
Width - Overall Machine 3585 mm
Width - Tractor 3381 mm
Width - Inside of Bowl 3048 mm
Width - Outside Rear Tires 3275 mm
Height - Overall Shipping 4029 mm
Height - Top of Cab 3621 mm
Ground Clearance - Tractor 557 mm
Front of Tractor to Front Axle 3119 mm
Axle to Vertical Hitch Pin 540 mm
Height - Scraper Blade Maximum 520 mm
Wheel Base 7998 mm
Rear Axle - Rear of Machine 2898 mm
Length - Maximum (Push-Pull) 15576 mm
Width - Rear Tire Centers 2290 mm
Length - Overall Machine - Standard 14015 mm
Width - Overall Machine - Ladder Down 3790 mm
Non Push-Pull
Operating Weight - Empty 40913 kg
Overall Length 14.02 m
Push-Pull
Overall Length - With Bail Down 15.58 m
Operating Weight - Empty 42168 kg
Travel Speeds - Runout
Transmission Gear - Fourth 16.3 km/h
Transmission Gear - Seventh 39.9 km/h
Transmission Gear - Eighth 53.9 km/h
Transmission Gear - Third 12.1 km/h
Transmission Gear - Fifth 21.9 km/h
Transmission Gear - First 5 km/h
Transmission Gear - Sixth 29.6 km/h
Transmission Gear - Reverse 9.2 km/h
Transmission Gear - Second 8.9 km/h
Implement Cycle Times
Apron Raise 2.95 s
Bail Lower 3.2 s
Apron Lower 3.8 s
Bowl Lower 3.5 s
Bowl Raise 3 s
Ejector Extend 5.2 s
Bail Raise 1.8 s
Ejector Retract 6.7 s
+ -
NOTE
POWER TRAIN – TRACTOR
  • - Cat C13
  • - Cat engine brake
  • - Electric start, 24 Volt
  • - Air cleaner, dry type with precleaner
  • - Fan, hydraulic
  • - Ground level engine shutdown
  • - Radiator, aluminum unit core, 9 fins per inch
  • - Guard, crankcase
  • - Muffler (only for less or non-regulated regions engine arrangement only)
  • - Starting aid, ether
  • - Braking system:
    – Primary and secondary, wet disc, hydraulic
    – Parking, hydraulic-released, spring-applied
    – Throttle lock
  • - Transmission:
    – 8-speed planetary power shift
    – ECPC control
    – APECS software
    – Programmable top gear selection
    – Transmission hold
    – Differential lock
    – Guard, power train
    – Standard tire spin reduction
    – Ground speed control
    – Machine speed limit
    – Differential lock protection
POWER TRAIN – SCRAPER
  • - Cat C9.3 engine with high pressure:
    – Common rail fuel
    – Cat engine brake
    – Electric start, 24 volt
    – Fan, driveline
    – Ground engine shutdown
    – Muffler (only for less or non-regulated regions engine arrangement only)
    – Starting aid, ether
  • - Braking system:
    – Primary and secondary, wet disc, hydraulic
    – 4 speed (torque converter drive)
    – Transmission planetary powershift
ELECTRICAL – TRACTOR
  • - Alternator, 150 Amp
  • - Batteries (4), 12V, 1,000 CCA, maintenance free, high output
  • - Electrical system, 24V
  • - Lighting system:
    – Headlights, 3×3 halogen
    – Turn signals with hazard function, LED floodlights, (2) 3×3 cutting edge (1) 3×3 bowl, halogen side vision (2) 3×3 halogen
  • - Starting/charging receptacle
ELECTRICAL – SCRAPER
  • - Alarm, backup
  • - Alternator, 65 Amp
  • - Batteries (4), 12V, 1,000 CCA, maintenance free, high output
  • - Lighting system:
    – Brake lights, LED
    – Turn signals with hazard function, LED
  • - Starting/charging receptacle
OPERATOR ENVIRONMENT – TRACTOR
  • - HVAC system, heat, AC, defrost
  • - Thermostat control of HVAC system
  • - Coat hook
  • - Lunchbox platform with holding strap
  • - Diagnostic connection (2)
  • - 12V power ports (2)
  • - Differential lock (1)
  • - Dome courtesy light
  • - Horn, electric
  • - T-Handle implement control
  • - Mirror, rearview
  • - Radio ready
  • - ROPS/FOPS cab, pressurized
  • - Keypad switches:
    – Rear engine start
    – Throttle lock
    – Wipers/washers
    – Hazard lights
    – Retarding level select
    – Work lights on, off
    – Information mode on Messenger Display
  • - Safety tab rocker switches:
    – Regeneration control
    – Parking brake
  • - Seat belt, static two-piece
  • - Seat, Cat Advanced Ride Management (ARM), Cat Comfort Series 3, rotates 30 degrees
  • - Steering wheel, tilt, telescoping, padded
  • - Windows, right side emergency egress
  • - Windows, sliding
  • - Windows, laminated, zipped in
  • - Windshield wipers, front and rear windows, includes washers
  • - Door lock
  • - Messenger Display
  • - Gauges, warnings include:
    – Coolant temperature
    – Engine oil temperature
    – Hydraulic oil temperature
    – Fuel level
    – Park brake
    – Implement lockout
    – Brake system
    – Regeneration required
    – Throttle lock
    – System voltage
    – Secondary steering
    – Bail down
    – Differential lock
    – Apron float
    – Transmission hold
    – Cushion hitch
    – High beam lights
    – Action lamp
    – Engine speed, rpm
    – Gear selection
FLUIDS
OTHER STANDARD EQUIPMENT – TRACTOR
  • - Advanced cushion hitch
  • - Accumulators (cushion hitch) with Canadian Registration Number (CRN)
  • - Fast oil change
  • - Fenders, non-metallic
  • - Heater, engine coolant 120V
  • - Rims (2)
  • - Tow pin, front
  • - Vandalism locks
  • - Heater, engine coolant 120V
OTHER STANDARD EQUIPMENT – SCRAPER
  • - Bowl
    – 18.4 m³ (24 yd³), heaped
    – 14.1 m³ (18.4 yd³), struck
    – Fast oil change
    – Vandalism locks
    – Guard, overflow
    – Heater, engine coolant 120V
  • - Hydraulic position sensing cylinders (bowl lift and apron)
SPECIAL ARRANGEMENTS
  • - Tractor/Scraper Arrangements
    – Push Pull Arrangement
  • - Fueling Arrangements
    – Fast Fill Group
+ -
NOTE
STEERING ARRANGEMENTS
INTEGRATED TECHNOLOGIES
  • - Sequence Assist Arrangement
  • - Load Assist
  • - Cat Grade Control with Load Assist
  • - Product Link™ Installation
OTHER ATTACHMENTS
  • - Camera arrangement – WAVS
  • - Steering lock – external
  • - Cab beacon
  • - Air horn
  • - Air horn and beacon
  • - Wiring group
  • - Year of manufacture plate
WORK LIGHT ATTACHMENTS
AMBIENT CAPABILITY ARRANGEMENTS
  • - Cooling, high ambient HRC
  • - Cooling, low ambient HRC
  • - Cooling, high ambient LRC
  • - Cooling, low ambient LRC
CLEANER
SERVICE INSTRUCTIONS
  • - Film arrangement – U.S. (ANSI)
  • - Film arrangement – International (ISO)
