M317 Wheeled Excavator

Wheel Excavators
M317_0
M317_0
M317_0
M317_0
HIGH PERFORMANCE AND VERSATILITY IN A COMPACT MACHINE

The Cat® M317 Wheeled Excavator offers more performance features and versatility than ever before. Its compact radius design lets you work in space restricted areas. With more digging force and increased swing torque, the M317 provides everything you need to get the job done quickly and efficiently. Low maintenance costs, longer service intervals, and reduced fuel consumption combine to provide low operating costs – keeping more money in your pocket.

Sustainability
LATEST FEATURES

  • Cab Monitor Improvements

  1. Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
    2.
  2. Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
    3.
  3. A new notification center keeps important information visible to the operator, and displays messages without shrinking the camera view.
    4.
  4. Color coded notifications set critical messages apart from the rest.
    5.
  5. Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

  • Enhance visibility to make service work easier and safer with optional inspection lighting.
    •
  • Standard integrated vehicle health management system alerts the operator with service guidance and parts needed to enhance uptime.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area.
Build Number: 07D
High Performance with Lower Fuel Consumption
LATEST FEATURES
High Performance with Lower Fuel Consumption

  • The Cat® C4.4 engine matches to your performance and production needs. The engine meets EU Stage V emission standards.
    •
  • Use up to 5 percent less fuel consumption over the M317F.
    •
  • Work confidently in space-restricted areas. Dig, swing, and dump within a tight working space.
    •
  • Travel more easily between sites with travel speeds up to 35 kph (21.7 mph).
    •
  • From dirt to asphalt, the excavator matches your needs to get the job done in a timely, efficient manner.
    •
  • The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise working requirements.
    •
  • With up to 8 percent more swing torque, you can get the job done faster to move on to the next one. The dedicated swing pump provides consistent power for better multitasking capabilities.
    •
  • Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
    •
  • Don't let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 52°C (125°F) and cold start capability of -18°C (0°F).
Work in Comfort
High Performance with Lower Fuel Consumption
Work in Comfort

  • Choose between Deluxe and Premium cab options.
    •
  • The Deluxe seat is heated and air adjustable while the Premium seat is heated, ventilated, and adjusts automatically.
    •
  • Get in and out of the cab easier using the tip-up left console.
    •
  • Feel more comfortable in the cab while you work with reduced cab vibrations from advanced viscous mounts.
    •
  • Control the excavator comfortably with easy-to-reach controls, all located in front of you.
    •
  • Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, bottle holder, and coat hook are also provided.
    •
  • Bluetooth® integrated radio allows for seamless mobile phone connection to listen to music, podcasts, and hands-free calling.
    •
  • Easily adjust the climate control system using the touchscreen monitor or jog dial.
Lower Maintenance Costs
Work in Comfort
Lower Maintenance Costs

  • Quickly check and service your machine with daily maintenance points accessible from ground level.
    •
  • Check the engine oil level quickly and safely from the ground.
    •
  • Save up to 5 percent in maintenance costs with longer lasting filters.
    •
  • Track your machine's filter life and maintenance intervals on the in-cab monitor.
    •
  • Two levels of fuel filtration protect the engine from fuel contamination.
    •
  • The hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval - 50 percent longer than previous filter designs.
    •
  • Scheduled Oil Sampling (S·O·SSM) ports are located at ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.
    •
  • Boost productivity with proactive service reminders. The Integrated vehicle health management system alerts the operator with step-by-step service guidance along with parts needed so you don't experience any unnecessary downtime.
Simple to Operate
Lower Maintenance Costs
Simple to Operate

  • Start the engine with the push-to-start button, a Bluetooth key fob, or the unique Operator ID function.
    •
  • Program your power mode and joystick preferences using Operator ID; the excavator remembers your settings each time you go to work.
    •
  • Navigate quickly on the standard high-resolution 254 mm (10 inch) touchscreen monitor or with the aid of the jog dial control.
    •
  • The axle locks at zero speed and unlocks when the travel pedal is activated. The axle can also be manually locked with a button on the right-hand console.
    •
  • Tiltrotator attachments--ours or other brands--work seamlessly with Cat 2D Grade, Assist, Payload, and E-Fence . With no additional hardware required, all you have to do is simply select "Third Party Tiltrotator System Installation" in the monitor, do the calibration, and get to work.
    •
  • Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format. Productivity applications are displayed in grid-view to read on-the-go, and touchscreen navigation is programmed to make sure job performance continues without any hold ups.
Safety
Simple to Operate
Safety

  • Access daily maintenance points from ground level.
    •
  • Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the pushbutton starting feature.
    •
  • The standard ROPS cab meets ISO 12117-2:2008 requirements.
    •
  • Enlarged windows and improved machine layout increase visibility from the seat of the cab compared to the M317F. Rearview and side-view cameras are standard.
    •
  • The service platform design provides easy, safe, and quick access to the upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.
    •
  • The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
    •
  • Swing lock prevents the front linkage from moving as you travel.
    •
  • Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
    •
  • Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.
Boost Efficiency and Productivity with Integrated Cat Technologies
Safety
Boost Efficiency and Productivity with Integrated Cat Technologies

  • Boost productivity versus traditional grading with optional Cat Grade with 2D system.
    •
  • Optional Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material--with a bucket and thumb combination or grapple and clamshell attachments--and get a real-time weight estimate without swinging.
    •
  • Combine Payload with VisionLink® and remotely manage your production targets or take payload data with you.
    •
  • Upgrade to our dual antenna GNSS for maximum grading efficiency. The system lets you create and edit designs on the touchscreen monitor while you’re on the job, or you can have the plan design sent to the excavator to make your work easier. Plus, you get added benefits of avoidance zones, cut and fill mapping, lane guidance, and augmented reality along with advanced positioning capability.
    •
  • Optional Grade Assist helps you stay on grade – simply and effortlessly – with single-lever digging. Set your desired bucket angle and let Bucket Assist automatically maintain the angle in sloping, leveling, fine grading, and trenching applications
    •
  • Optional 2D E-fence is integrated right out of the factory to prevent the excavator from moving outside operator defined set points.
    •
  • All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica. Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.
Sustainability
Boost Efficiency and Productivity with Integrated Cat Technologies
Sustainability

  • The Cat® C4.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Korea Tier 5 emission standards.
    •
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
    •
  • Cat Grade technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy.
    •
  • Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
    •
  • Cat® Payload for excavators provides on-the-go material weighing which helps reduce fuel burn by improving loading efficiency, job site productivity, and eliminating trips to the scale.
    •
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
    •
  • Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
    •
  • Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions. VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
    •
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of  blends higher than 20% biodiesel, consult your Cat dealer).**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
LATEST FEATURES
M317 Latest features
M317 Wheeled Excavator
M317 Wheeled Excavator
M317 Wheeled Excavator
M317 Wheeled Excavator
M317 Wheeled Excavator
M317 Wheeled Excavator Technology

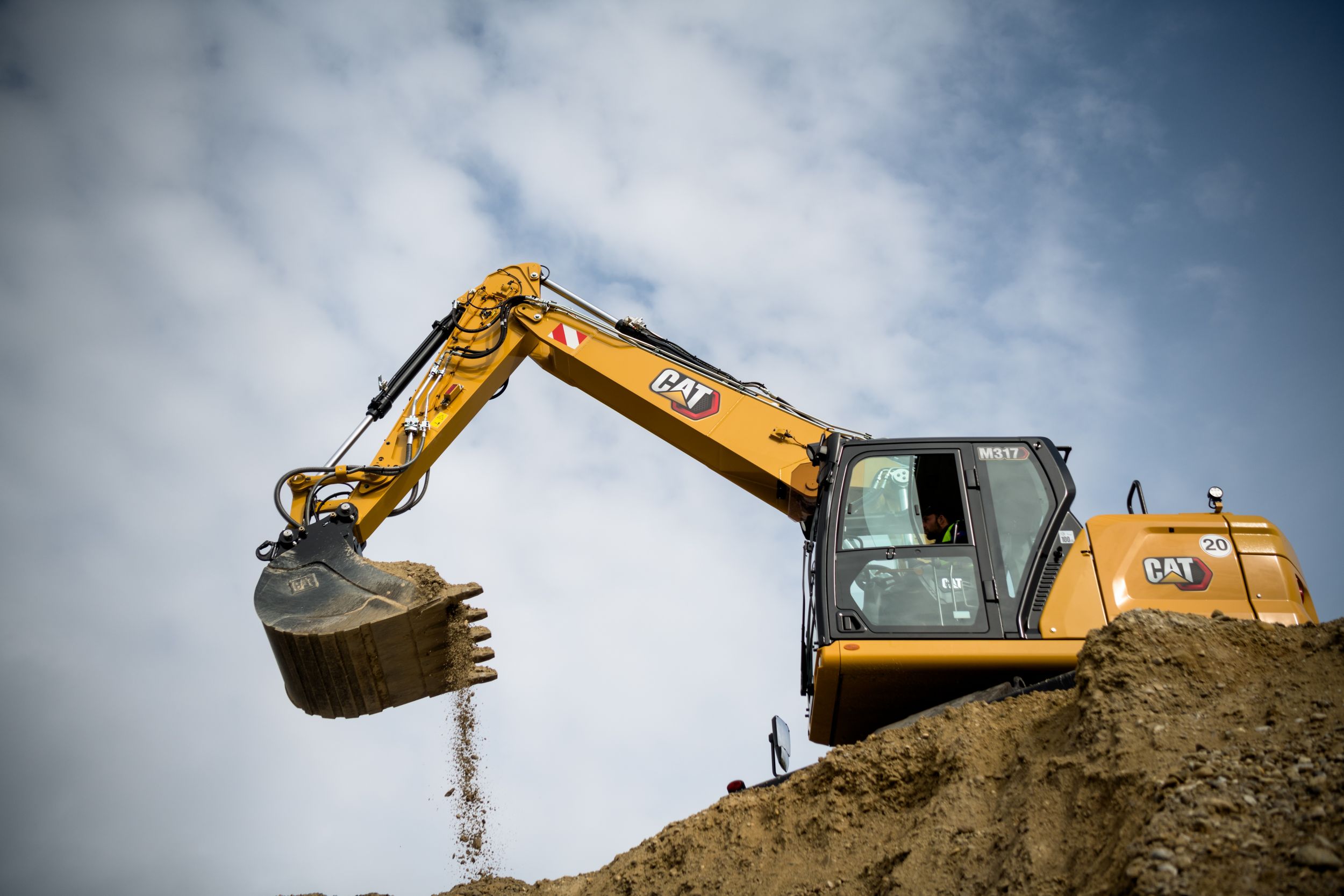

M317 Upward shot
+ -
Engine
Engine Model C4.4
Biodiesel Capability Up to B20¹
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards.
Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, CEM exhaust gas aftertreatment, alternator, and cooling fan with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Dimensions
Boom VA 5.2 m (17'1")
Stick 2.5m (8'2")
Bucket GD 0.80 m³ (1.05 yd³ )
Working Ranges and Forces
Boom Type VA 5.2 m (17'1")
Stick 2.5m (8'2")
Bucket GD 0.80 m³ (1.05 yd³ )
Air Conditioning System
Note The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.43 metric tonnes.
+ -
Engine
Engine Power - ISO 14396 112 kW
Engine Power - ISO 14396 (DIN) 152 hp (metric)
Net Power - ISO 9249 108 kW
Net Power - ISO 9249 (DIN) 150 hp (metric)
Bore 105 mm
Displacement 4.4 l
Stroke 5 in
Hydraulic System
Main System - Maximum Flow - Implement 254 l/min
Maximum Pressure - Implement Circuit - Heavy Lift 37000 kPa
Maximum Pressure - Implement Circuit - Travel Circuit 35000 kPa
Maximum Pressure - Implement Circuit - Normal 35000 kPa
Swing Mechanism
Maximum Swing Torque 44 kN·m
Swing Speed 9.4 r/min
Machine Weight
Operating Weight Maximum 20100 kg
Operating Weight Minimum 17350 kg
Service Refill Capacities
Fuel Tank 290 l
Diesel Exhaust Fluid (DEF) 20 l
Cooling System 9.2 gal (US)
Hydraulic Tank 120 l
Hydraulic System - Including Tank 280 l
Transmission
Maximum Travel Speed 35 km/h
Forward/Reverse - 1st Gear 10 km/h
Forward/Reverse - 2nd Gear 35 km/h
Creeper Speed - 1st Gear 5.5 km/h
Creeper Speed - 2nd Gear 15 km/h
Drawbar Pull 104 kN
Dimensions
Shipping Height - Top of Cab 3320 mm
Support Point 3530 mm
Shipping Length 6260 mm
Tail Swing Radius 1850 mm
Counterweight Clearance 1300 mm
Ground Clearance 325 mm
Undercarriage Length 5050 mm
Wheel Base 2700 mm
Working Ranges and Forces
Dump Height 7770 mm
Digging Height 5770 mm
Reach at Ground Level 9220 mm
Vertical Wall Digging Depth 4470 mm
Stick Forces (ISO) 70 kN
Bucket Forces (ISO) 119 kN
working Ranges and Forces
Cutting Height 10720 mm
+ -
NOTE
BOOM AND STICKS
CAB
  • - ROPS, sound suppression
  • - High-resolution 254 mm (10 in) LCD touchscreen monitor
CAT TECHNOLOGY
  • - VisionLink
  • - Remote Flash
  • - Remote Troubleshoot
ELECTRICAL SYSTEM
  • - LED lights on chassis (left-hand, right-hand) and counterweight
  • - Programmable time-delay LED working lights
  • - Roading and indicator lights, front and rear
  • - Maintenance-free batteries
  • - Centralized electrical disconnect switch
ENGINE
  • - Cat C4.4 diesel engine
  • - Power mode selector
  • - One-touch low idle with auto engine speed control
  • - Auto engine idle shutdown
  • - 52°C (125°F) high-ambient cooling capacity
  • - Cold start capability -18°C (0°F)
  • - Sealed double element air filter with integrated precleaner
  • - Electric fuel priming pump
  • - On-demand electric cooling fans
HYDRAULIC SYSTEM
  • - Automatic swing brake
  • - Auto hydraulic oil warm up
  • - Electronic main control valve
  • - Boom, stick, and bucket drift reduction valves
  • - Heavy lift mode
  • - Quick coupler circuit for CW-dedicated coupler
  • - Separate dedicated swing pump
  • - Adjustaqble hydraulic aggresiveness
  • - Electronic pattern changer
  • - Auxiliary high pressure circuit
SAFETY AND SECURITY
  • - Rear- and right-side-view cameras
  • - Wide angle mirrors
  • - Ground-level engine shutoff switch
  • - Anti-skid plate and countersunk bolts on service platform
SERVICE AND MAINTENANCE
  • - Sampling ports for Scheduled Oil Sampling (S-O-S)
  • - Integrated vehicle health management system
UNDERCARRIAGE AND STRUCTURES
  • - Creeper speed
  • - Electronic swing and travel lock
  • - Heavy-duty axles, advanced disc brake system and travel motor, adjustable braking force
  • - Oscillating front axle, lockable, with remote greasing point
  • - Automatic brake/axle lock
  • - 4300 kg (9,460 lb) counterweight
  • - All wheel drive
+ -
NOTE
BOOM AND STICKS
  • - 2.2 m (7'3") stick
  • - 2.5 m (8'2") stick
CAB
  • - Deluxe cab
  • - Premium cab
  • - Auxiliary relay
CAT TECHNOLOGY
  • - Cat Grade Connectivity
  • - Cat Grade 2D
  • - Cat Grade with Attachment Ready Option (ARO)
  • - Cat Grade 3D dual GNSS
  • - Laser catcher
  • - Grade Assist
  • - Cat Payload
  • - Cat Tilt Rotator (TRS) Integration
ELECTRICAL SYSTEM
HYDRAULIC SYSTEM
  • - 1-slider joystick
  • - 2-slider joystick
  • - Second high-pressure auxiliary circuit (one/ two-way high-pressure flow)
  • - Medium pressure auxiliary circuit (one/twoway medium-pressure flow)
  • - SmartBoomTM
  • - Ride control
  • - Cat tiltrotator support
  • - Joystick steering
SAFETY AND SECURITY
  • - 360° visibility
  • - Cat asset tracker
  • - Inspection lighting
  • - Signaling/warning horn
  • - 2D E-Fence
SERVICE AND MAINTENANCE
UNDERCARRIAGE AND STRUCTURES
  • - 10.00-20 16 PR, dual tires
  • - 11.00-20 16 PR, dual tires
  • - 315/70R22.5, no gap dual tires
  • - 445/70R 19.5, single tires
  • - 300-80-22.5 dual pneumatic, spacerless tire
