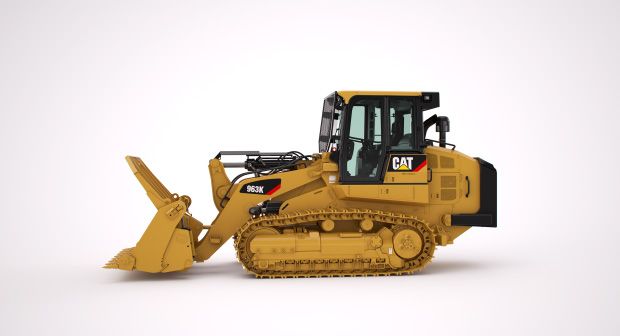

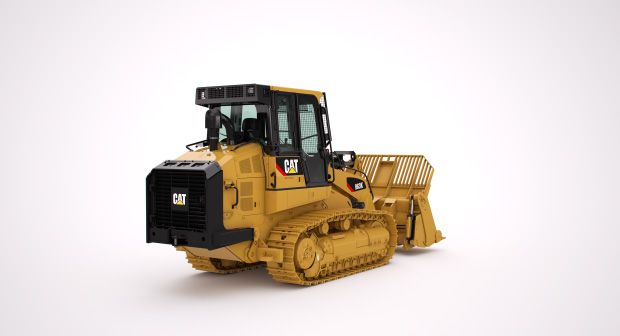

Waste Handler Track Loaders
Pret la cerere
From loading and sorting to excavation and spreading cover material, the track loader is one of the most versatile pieces of equipment in your landfill or transfer station. Waste Handling arrangements feature added guarding and seals to gives you a purpose-built machine to take on the challenges of waste applications. A choice of buckets and track shoes allow you to further optimize the machine for greater performance and service life. The new Cat crawler loaders offer added fuel efficiency over the previous models, as well as greater comfort and improved implement and steering response.
Descriere
+
-
Engine
| Engine Model | Cat C7.1 ACERT |
| Engine Power - Maximum - ISO 14396 | 129 kW |
| Emissions | U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 or China Nonroad Stage III, India Bharat III, Eurasian Economic Union Stage IIIA UN ECE R96 Stage IIIA emission standards, equivalent to Tier 3/Stage IIIA |
| Engine Power - Maximum - ISO 14396 (DIN) | 129 kW |
| Net Power - Rated - ISO 9249/SAE J1349 | 115 kW |
| Net Power - Rated - ISO 9249/SAE J1349 (DIN) | 115 kW |
| Bore | 105 mm |
| Stroke | 135 mm |
| Displacement | 7.01 l |
| Engine Power - Maximum - SAE J1995 | 132 kW |
| Note (1) | Engine ratings at 1,800 rpm. |
| Note (2) | All nonroad Tier 4 Interim and Final, Stage IIIB and IV and Korea Tier 4 diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM... |
| Note (3) | Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
Undercarriage
| Track Shoe Type | Double Grouser |
| Track on Ground | 2320 mm |
| Track Gauge | 1836 mm |
| Track Shoe Width - Standard Shoe/Center Hole | 480 mm |
| Track Rollers/Shoes - Each Side | 6 Rollers/37 Shoes - Each Side |
| Ground Contact Area - Standard Shoe/Center Hole | 2.2 m² |
| Ground Pressure* - Standard Shoe/Center Hole** | 60.7 kPa |
| Ground Pressure - Standard Shoe/Center Hole** | 59.6 kPa |
| Grouser Height | 35 mm |
| Link Pitch | 190 mm |
| Note (1) | *Machine equipped with Tier 4 Final/Stage IV emissions reduction technology. |
| Note (2) | **ISO 16754:2008. |
| Note (3) | Ground pressure is calculated using operating weight of machine with General Purpose bucket, teeth and segments. |
Service Refill Capacities
| Fuel Tank | 265 l |
| Cooling System | 32 l |
| DEF Tank | 16 l |
Weights
| Operating Weight | 15720 kg |
Buckets
| Capacity - General Purpose Landfill | 2.3 m³ |
| Capacity - General Purpose | 1.8 m³ |
| Capacity - Performance Series | 2.1 m³ |
| Capacity - Multi-Purpose | 1.6 m³ |
| Capacity - Landfill | 2.3 m³ |
| Bucket Width - General Purpose | 2485 mm |
| Bucket Width - Performance Series | 2536 mm |
| Bucket Width - Landfill | 2485 mm |
| Bucket Width - Multi-Purpose | 2471 mm |
| Note | Bucket equipped with teeth and segments. |
Dimensions (Approximate)
| Ground Clearance | 417 mm |
| Machine Height - Top of Cab | 3155 mm |
| Length - Front of Track | 4545 mm |
| Overall Machine Length* | 6389 mm |
| Carry Position Approach Angle | 15° |
| Digging Depth* | 140 mm |
| Maximum Rollback - Ground | 43° |
| Maximum Rollback - Carry Position | 50° |
| Bucket Height - Carry Position | 548 mm |
| Reach at Full Lift Height and 45° Dump* | 1195 mm |
| Clearance at Full Lift Height and 45° Dump* | 2694 mm |
| Maximum Rollback - Fully Raised | 52° |
| Maximum Dump, Fully Raised | 53° |
| Grading Angle | 74° |
| Height - Bucket Hinge Pin | 3610 mm |
| Overall Machine Height - Bucket Fully Raised | 5487 mm |
| Height - Top of Seat with Headrest | 2596 mm |
| Height - Top of Stack | 2804 mm |
| Ramp Angle | 29° |
| Note | *With general purpose bucket and extra duty teeth. |
| Overall Machine Width without Bucket: With Standard Tracks - 480 mm (19.7 in) Shoes | 2316 mm |
| Overall Machine Width without Bucket: With Wide Gauge Tracks - 800 mm (31.5 in) Shoes | 2936 mm |
| Note | Dimensions vary with bucket. Refer to Operating Specifications chart. |
Weights - Waste Handler
| Operating Weight* | 15720 kg |
| Operating Weight | 15433 kg |
| Shipping Weight* | 14455 kg |
| Shipping Weight | 14168 kg |
| Note | *Machine equipped with Tier 4 Final/Stage IV emissions reduction technology. |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.1 kg of refrigerant which has a CO2 equivalent of 1.573 metric tonnes. |
