Waste Handler Track Loaders
Pret la cerere

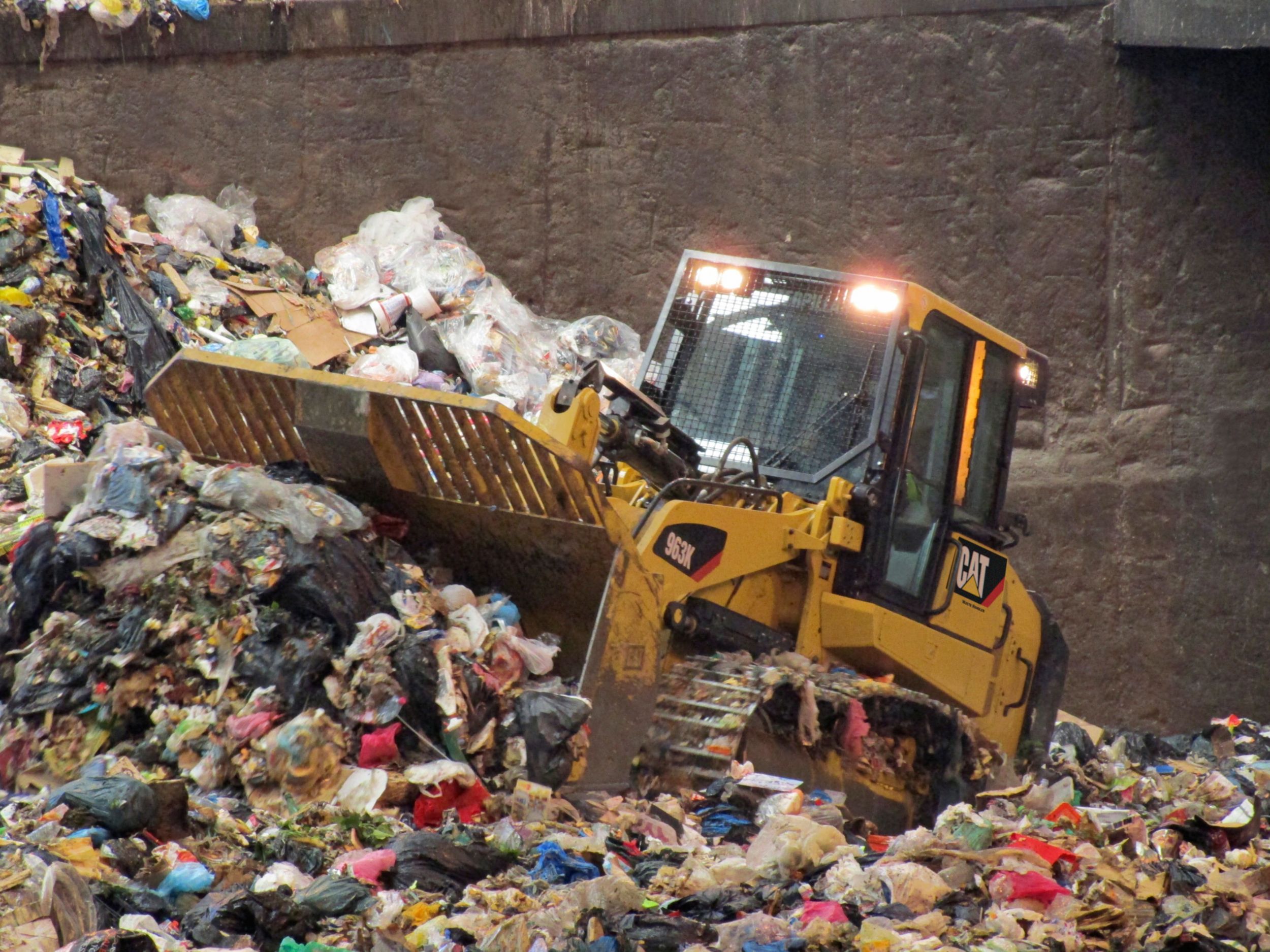

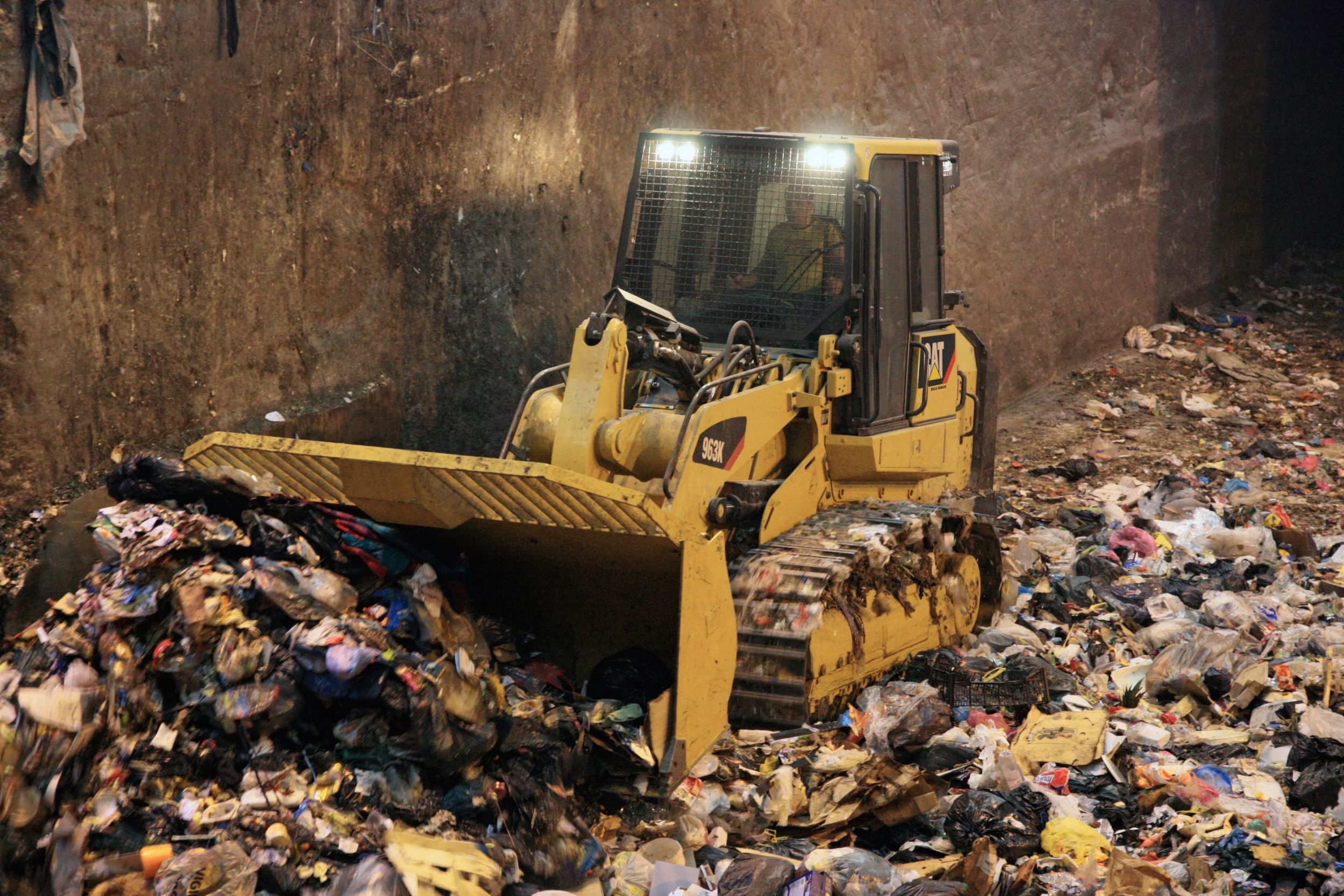

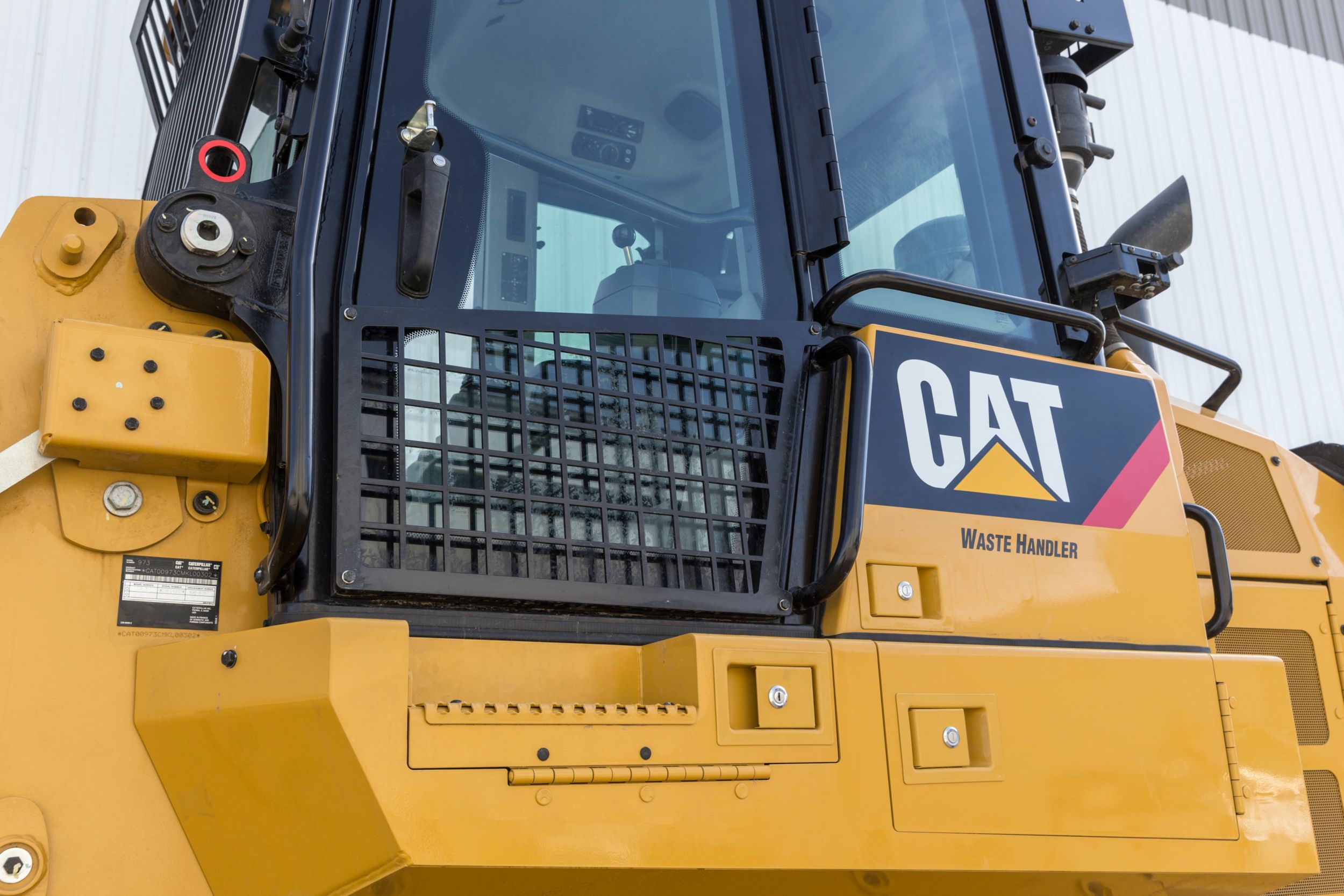

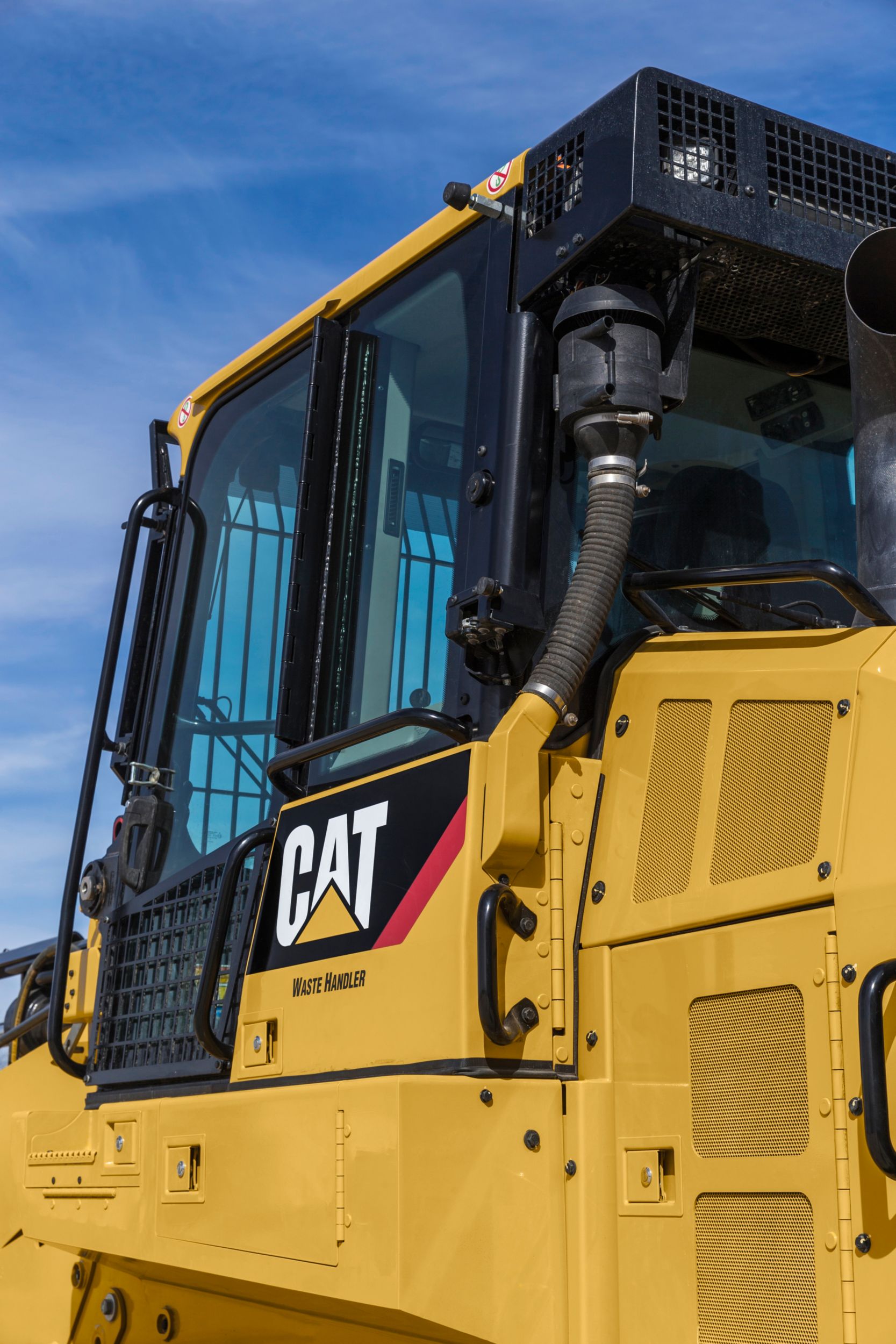

From loading and sorting to excavation and spreading cover material, the track loader is one of the most versatile pieces of equipment in your landfill or transfer station. Waste Handling arrangements feature added guarding and seals to gives you a purpose-built machine to take on the challenges of waste applications. A choice of buckets and track shoes allow you to further optimize the machine for greater performance and service life. The new Cat crawler loaders offer added fuel efficiency over the previous models, as well as greater comfort and improved implement and steering response.
Descriere
+
-
Engine
| Engine Model | Cat C9.3 ACERT |
| Emissions | Tier 4 Final/EU Stage IV/Korea Tier 4 |
| Engine Power - Maximum - ISO 14396 (DIN) | 228 kW |
| Net Power - Rated - ISO 9249/SAE J1349 (DIN) | 205 kW |
| Bore | 115 mm |
| Stroke | 149 mm |
| Displacement | 9.3 l |
| Note (1) | Engine ratings at 1,800 rpm. |
| Note (2) | All nonroad Tier 4 Interim and Final, Stage IIIB and IV and Korea Tier 4 diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM... |
| Note (3) | Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
Weights
| Operating Weight | 29175 kg |
Buckets
| Capacity - General Purpose Landfill | 4.9 m³ |
| Capacity - General Purpose | 3.2 m³ |
| Capacity - Performance Series | 3.8 m³ |
| Capacity - Multi-Purpose | 3 m³ |
| Capacity - Landfill | 4.9 m³ |
| Bucket Width - General Purpose | 2974 mm |
| Bucket Width - Performance Series | 2982 mm |
| Bucket Width - Multi-Purpose | 2946 mm |
| Bucket Width - Landfill | 2974 mm |
| Note | Bucket equipped with teeth and segments. |
Service Refill Capacities
| Fuel Tank | 384 l |
| Cooling System | 44 l |
| DEF Tank | 35 l |
Weights - Waste Handler
| Operating Weight | 29175 kg |
| Shipping Weight | 26710 kg |
Undercarriage
| Track Shoe Type | Double Grouser |
| Track Shoe Width - Standard Shoe/Center Hole | 550 mm |
| Track Rollers/Shoes - Each Side | 7 Rollers/40 Shoes - Each Side |
| Track on Ground | 2930 mm |
| Ground Contact Area - Standard Shoe/Center Hole | 3.66 m² |
| Ground Pressure - Standard Shoe/Center Hole** | 77.6 kPa |
| Grouser Height | 49 mm |
| Track Gauge | 2160 mm |
| Link Pitch | 215.9 mm |
| Note (1) | **ISO 16754:2008. |
| Note (2) | Ground pressure is calculated using operating weight of machine with General Purpose bucket, teeth and segments. |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes. |
Dimensions (Approximate)
| Overall Machine Width without Bucket: With Standard Tracks - 480 mm (19.7 in) Shoes | 2710 mm |
| Overall Machine Width without Bucket: With Wide Gauge Tracks - 800 mm (31.5 in) Shoes | 3145 mm |
| Ground Clearance | 469 mm |
| Machine Height - Top of Cab | 3510 mm |
| Length - Front of Track | 5323 mm |
| Overall Machine Length* | 7579 mm |
| Carry Position Approach Angle | 15° |
| Digging Depth* | 158 mm |
| Maximum Rollback - Ground | 43° |
| Maximum Rollback - Carry Position | 47° |
| Bucket Height - Carry Position | 483.5 mm |
| Reach at Full Lift Height and 45° Dump* | 1366 mm |
| Clearance at Full Lift Height and 45° Dump* | 2952 mm |
| Maximum Rollback - Fully Raised | 59° |
| Maximum Dump, Fully Raised | 49° |
| Grading Angle | 85° |
| Height - Bucket Hinge Pin | 4218 mm |
| Overall Machine Height - Bucket Fully Raised | 6262 mm |
| Height - Top of Seat with Headrest | 2988 mm |
| Height - Top of Stack | 3069 mm |
| Ramp Angle | 29° |
| Note | *With general purpose bucket and extra duty teeth. |
| Note | Dimensions vary with bucket. Refer to Operating Specifications chart. |
