Incarcatoare frontale de talie mare
Pret la cerere

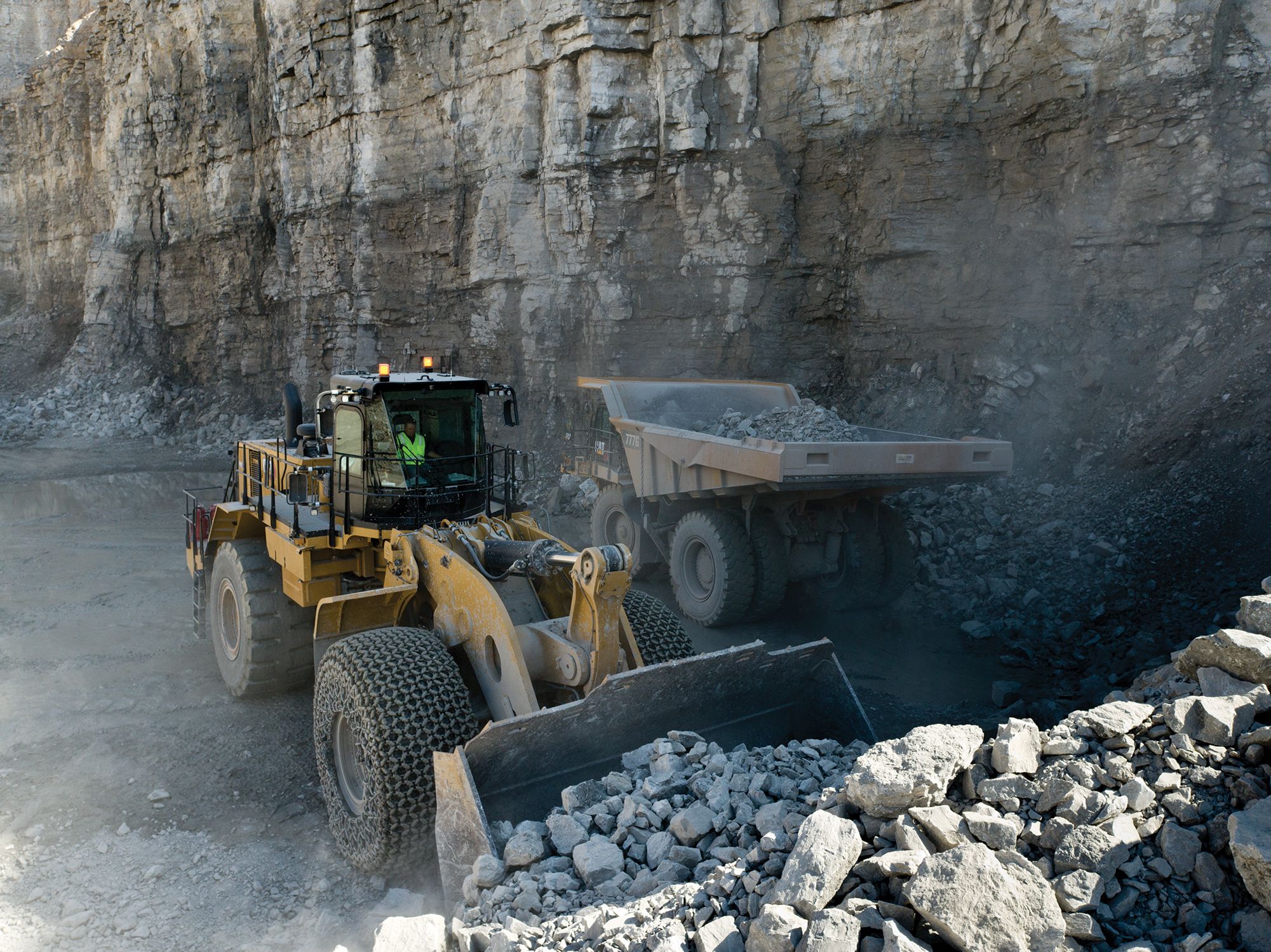

Încărcătorul frontal cu roți mari Cat® 992 stabilește standardul în clasa sa de dimeniuni de mai bine de 50 de ani, oferind productivitate de vârf, fiabilitate de neegalat și durată lungă de viață. 992 de astăzi ridică ștacheta – crește semnificativ eficiența, sporește productivitatea fără creșterea consumului de combustibil și asigură obținerea valorii maxime din investiția proprie.
Descriere
+
-
Engine
| Net Power | 607 kW |
| Engine Model | Cat® C32B |
| Emissions | U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent |
| Rated Speed | 1750 rpm |
| Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC (Highly Regulated Country) - Standard | 671 kW |
| Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC - High Ambient | 699 kW |
| Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC (Less Regulated Country) - Standard | 676 kW |
| Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC - High Ambient | 704 kW |
| Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - Standard | 659 kW |
| Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - High Ambient | 687 kW |
| Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - Standard | 666 kW |
| Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - High Ambient | 694 kW |
| Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - Standard | 607 kW |
| Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - High Ambient | 607 kW |
| Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - Standard | 614 kW |
| Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - High Ambient | 614 kW |
| Bore | 145 mm |
| Stroke | 162 mm |
| Displacement | 32.1 l |
| Peak Torque - SAE J1995 - Tier 4/HRC - Standard @ 1,200 rpm | 4765 N·m |
| Peak Torque - SAE J1995 - Tier 4/HRC - High Ambient @ 1,300 rpm | 4820 N·m |
| Peak Torque - SAE J1995 - Tier 2/LRC - Standard @ 1,200 rpm | 4796 N·m |
| Peak Torque - SAE J1995 - Tier 2/LRC - High Ambient @ 1,350 rpm | 4841 N·m |
Operating Specifications
| Operating Weight | 105882 kg |
| Rated Payload - Standard | 23.1 t |
| Rated Payload - Standard (Material Handler) | 27.2 t |
| Rated Payload - High Lift | 20.4 t |
| Rated Payload - High Lift (Material Handler) | 24.5 t |
| Bucket Capacity Range | 11.5-24.5 m³ (15-32 yd³) |
| Cat Truck Match - Standard | 775/777/785 |
| Cat Truck Match - High Lift | 777/785 |
Buckets
| Bucket Capacities | 11.5-24.5 m³ (15-32 yd³) |
Transmission
| Transmission Type | Cat Planetary Powershift |
| Forward - 1 | 7 km/h |
| Forward - 2 | 11.9 km/h |
| Forward - 3 | 20.5 km/h |
| Direct Drive - Forward 1 | Disabled |
| Direct Drive - Forward 2 | 12.9 km/h |
| Direct Drive - Forward 3 | 22.6 km/h |
| Reverse - 1 | 7.5 km/h |
| Reverse - 2 | 13 km/h |
| Reverse - 3 | 22.4 km/h |
| Direct Drive - Reverse 1 | 8 km/h |
| Direct Drive - Reverse 2 | 14.2 km/h |
| Direct Drive - Reverse 3 | 24.7 km/h |
Hydraulic System - Lift/Tilt
| Lift/Tilt System - Circuit | Positive Flow Control |
| Lift/Tilt System - Pump | Variable Displacement Piston |
| Maximum Flow at 2,165 rpm | 950 l/min |
| Relief Valve Setting - Lift/Tilt | 34500 kPa |
| Lift Cylinder - Bore | 235 mm |
| Lift Cylinder - Stroke | 1613 mm |
| Tilt Cylinder - Bore | 292 mm |
| Tilt Cylinder - Stroke | 1055 mm |
Hydraulic Cycle Times
| Rack Back | 2.3 s |
| Rack Back - High Lift | 2.3 s |
| Raise | 9 s |
| Raise - High Lift | 9 s |
| Dump | 2.6 s |
| Dump - High Lift | 2.6 s |
| Float Down | 3.2 s |
| Float Down - High Lift | 3.2 s |
| Total Hydraulic Cycle Time | 17.1 s |
Service Refill Capacities
| Fuel Tank | 1460 l |
| Cooling Systems | 225 l |
| Crankcase | 120 l |
| Transmission | 195 l |
| Differential - Final Drives - Front | 365 l |
| Differential - Final Drives - Rear | 365 l |
| Hydraulic System Factory Fill (Implement) | 394 l |
| Hydraulic Tank - Implement | 228 l |
| Hydraulic Factory Fill (Steering) | 123 l |
| Hydraulic Tank (Steering Tank Only) | 99.5 l |
Axles
| Front | Fixed |
| Rear | Trunnion |
| Oscillation Angle | ±9° |
Brakes
| Brakes | ISO 3450:2011 |
Hydraulic System - Steering
| Steering System - Circuit | Pilot, Load Sensing |
| Steering System - Pump | Piston, Variable Displacement |
| Maximum Flow at 1,400-1,850 rpm | 265 l/min |
| Steering Cut Off Pressure | 31000 kPa |
| Total Steering Angle | 80° |
| Steering Cycle Times - Low Idle | 4.9 s |
| Steering Cycle Times - High Idle | 3.1 s |
Cooling System
| Ambient Capability Hydraulically Driven Demand Fan - Standard | 43 °C |
| Ambient Capability, Hydraulically Driven Demand Fan - High | 55 °C |
Sound Performance - Standard
| Note | Machine Sound Level (ISO 6396:2008) - 116 dB(A) |
Sound Performance - Suppression
| Note | Machine Sound Level (ISO 6396:2008) - 113 dB(A) |
Dimensions - Standard Lift - Approximate
| Ground to Top of Exhaust Stacks | 5169 mm |
| Ground to Top of ROPS | 5571 mm |
| Ground to Top of Hood | 3983 mm |
| Ground to Center of Front Axle | 1308 mm |
| Ground to Bumper Clearance | 1145 mm |
| Ground to Lower Hitch Clearance | 666 mm |
| Reach - Maximum Lift | 2503 mm |
| Clearance at Maximum Lift | 4630 mm |
| B-Pin Height - Maximum Lift | 6948 mm |
| Maximum Overall Height - Bucket Raised | 9390 mm |
| Rear Axle - Centerline to Bumper | 4119 mm |
| Wheel Base | 5890 mm |
| Maximum Overall Length | 15489 mm |
| Front Axle Centerline to Bucket Tip | 5480 mm |
Dimensions - High Lift - Approximate
| Ground to Top of Exhaust Stacks | 5169 mm |
| Ground to Top of ROPS | 5571 mm |
| Ground to Top of Hood | 3983 mm |
| Ground to Center of Front Axle | 1308 mm |
| Ground to Bumper Clearance | 1145 mm |
| Ground to Lower Hitch Clearance | 666 mm |
| Reach - Maximum Lift | 2319 mm |
| Clearance at Maximum Lift | 5256 mm |
| B-Pin Height - Maximum Lift | 7465 mm |
| Maximum Overall Height - Bucket Raised | 9759 mm |
| Rear Axle - Centerline to Bumper | 4119 mm |
| Wheel Base | 5890 mm |
| Maximum Overall Length | 15733 mm |
| Front Axle Centerline to Bucket Tip | 5724 mm |
