Excavatoare manipulare materiale pe roți
Pret la cerere

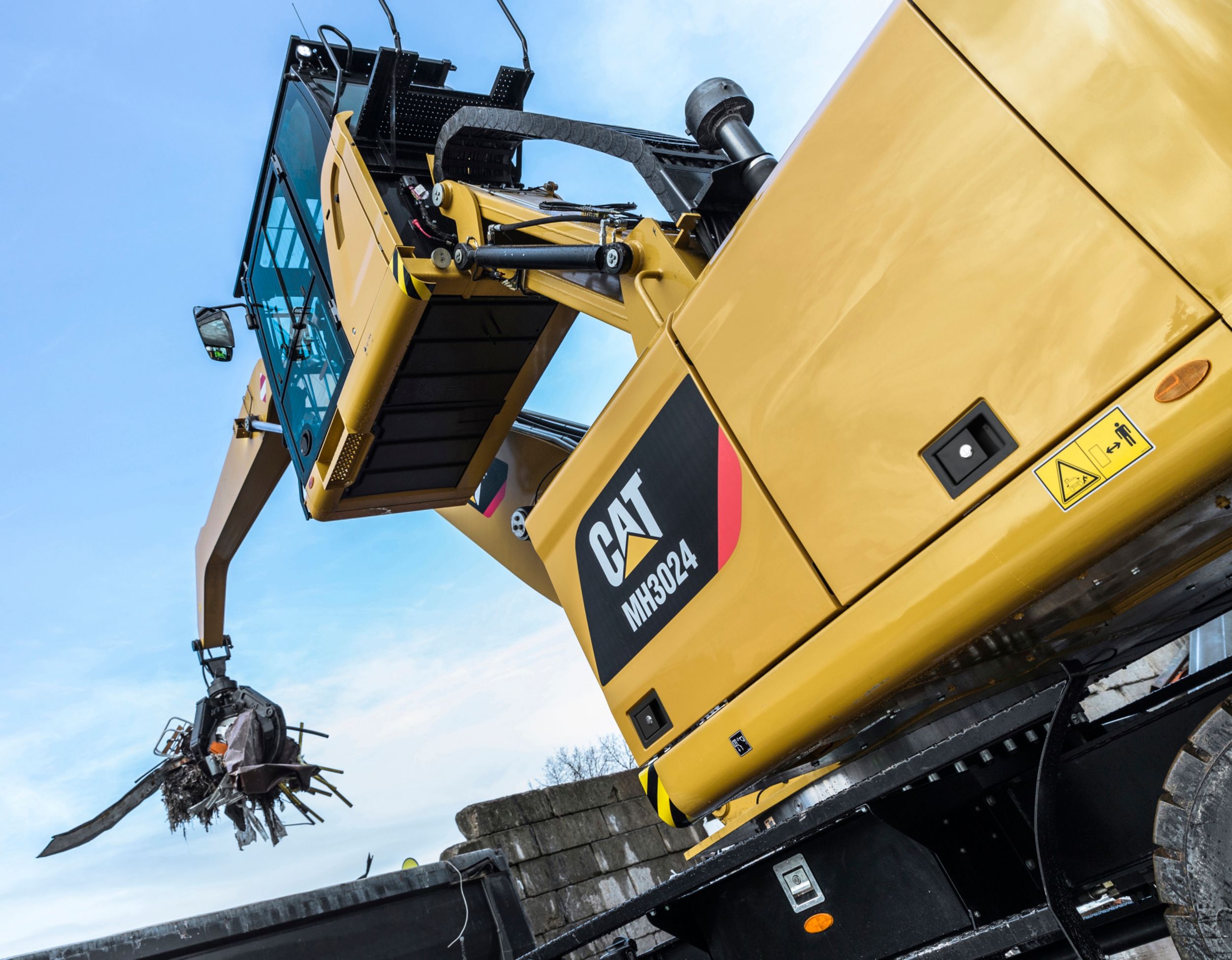

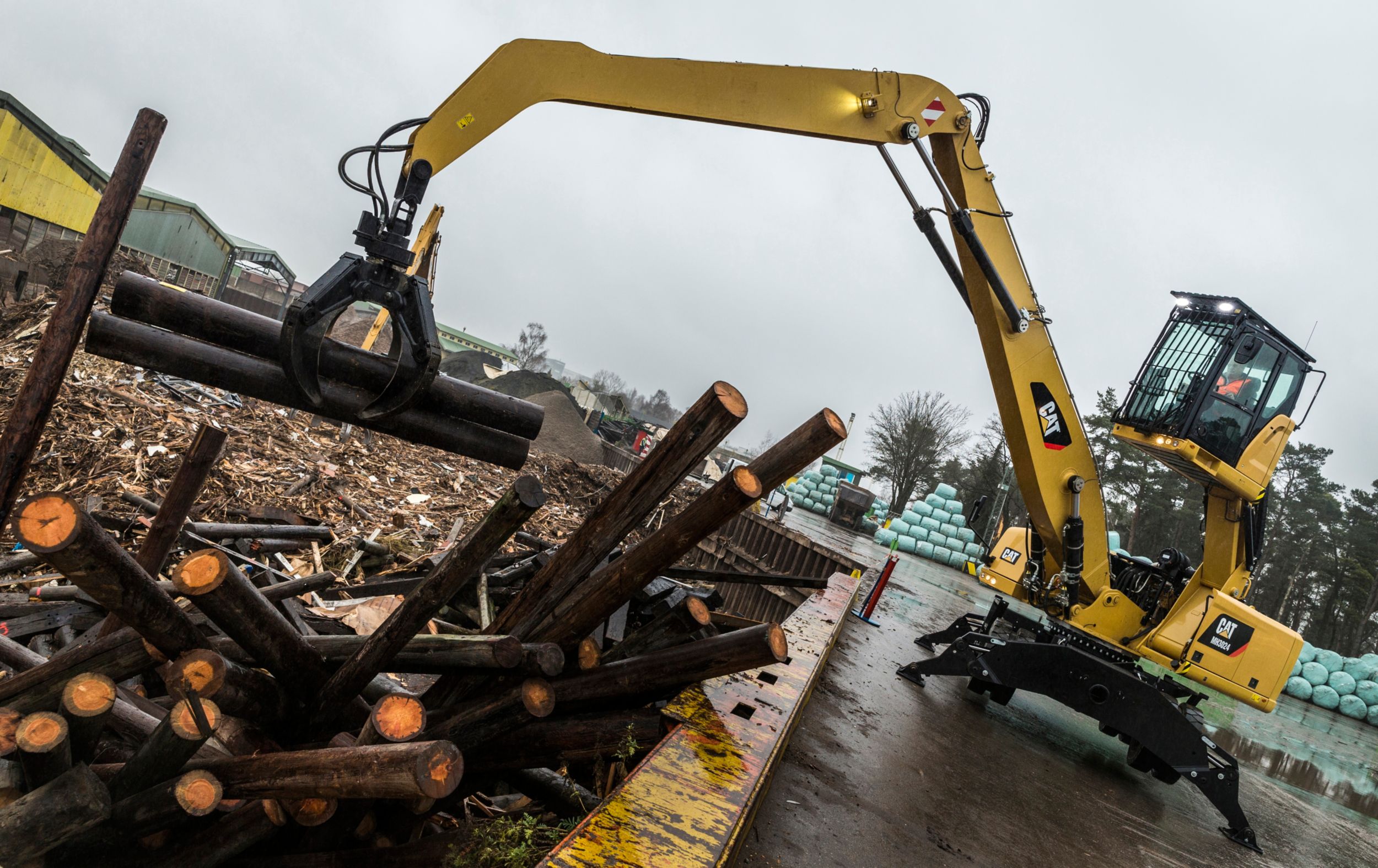

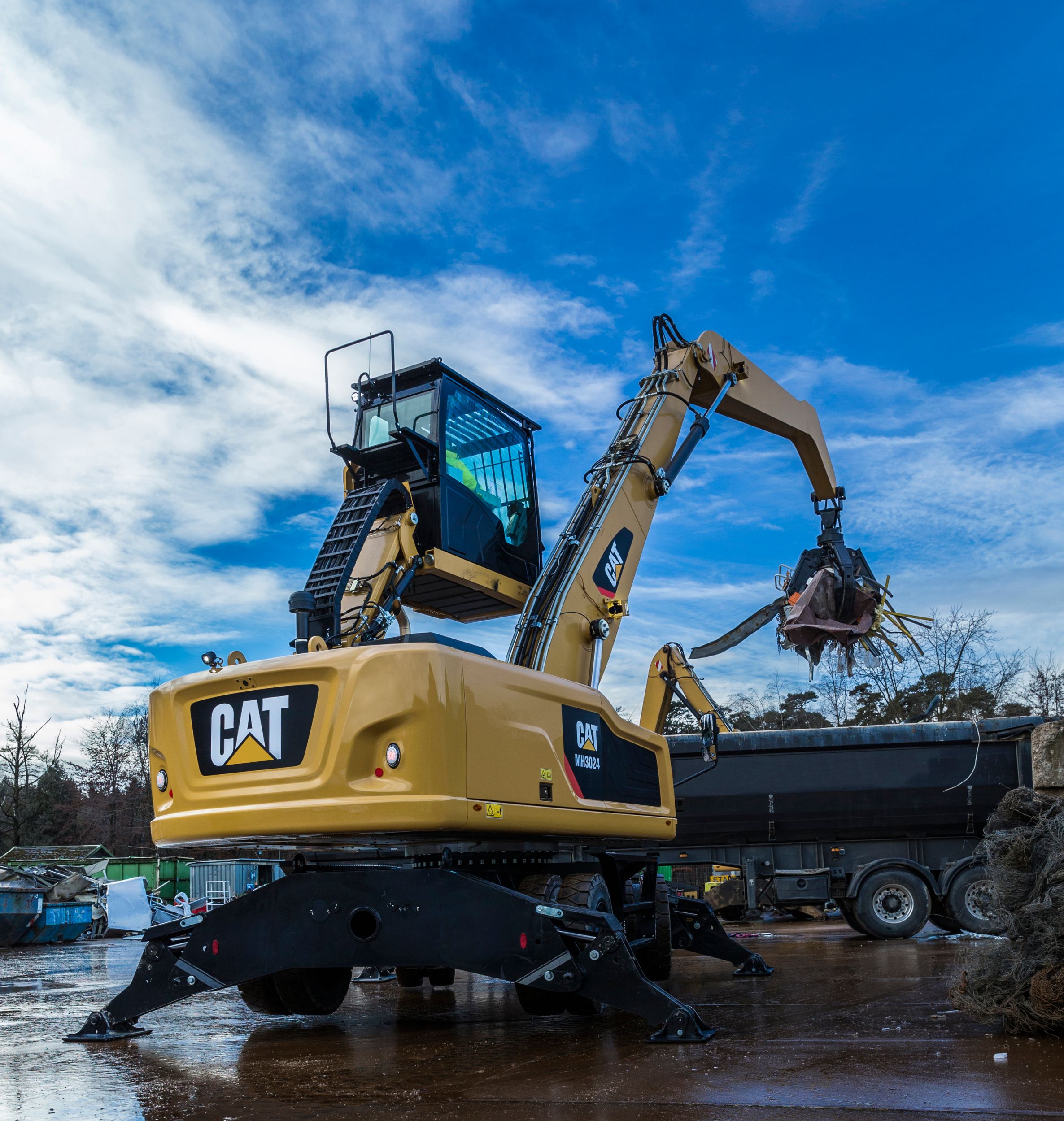

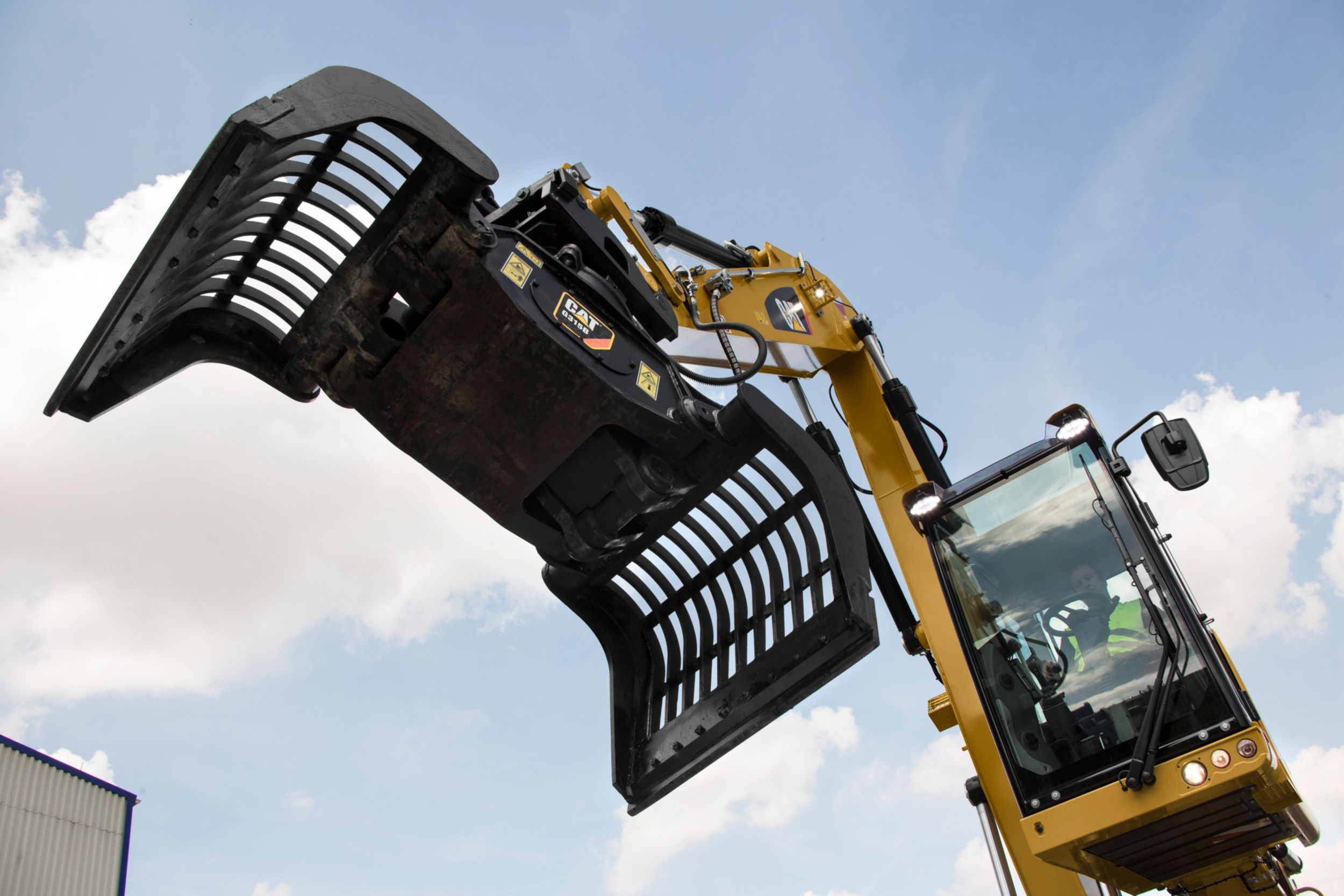

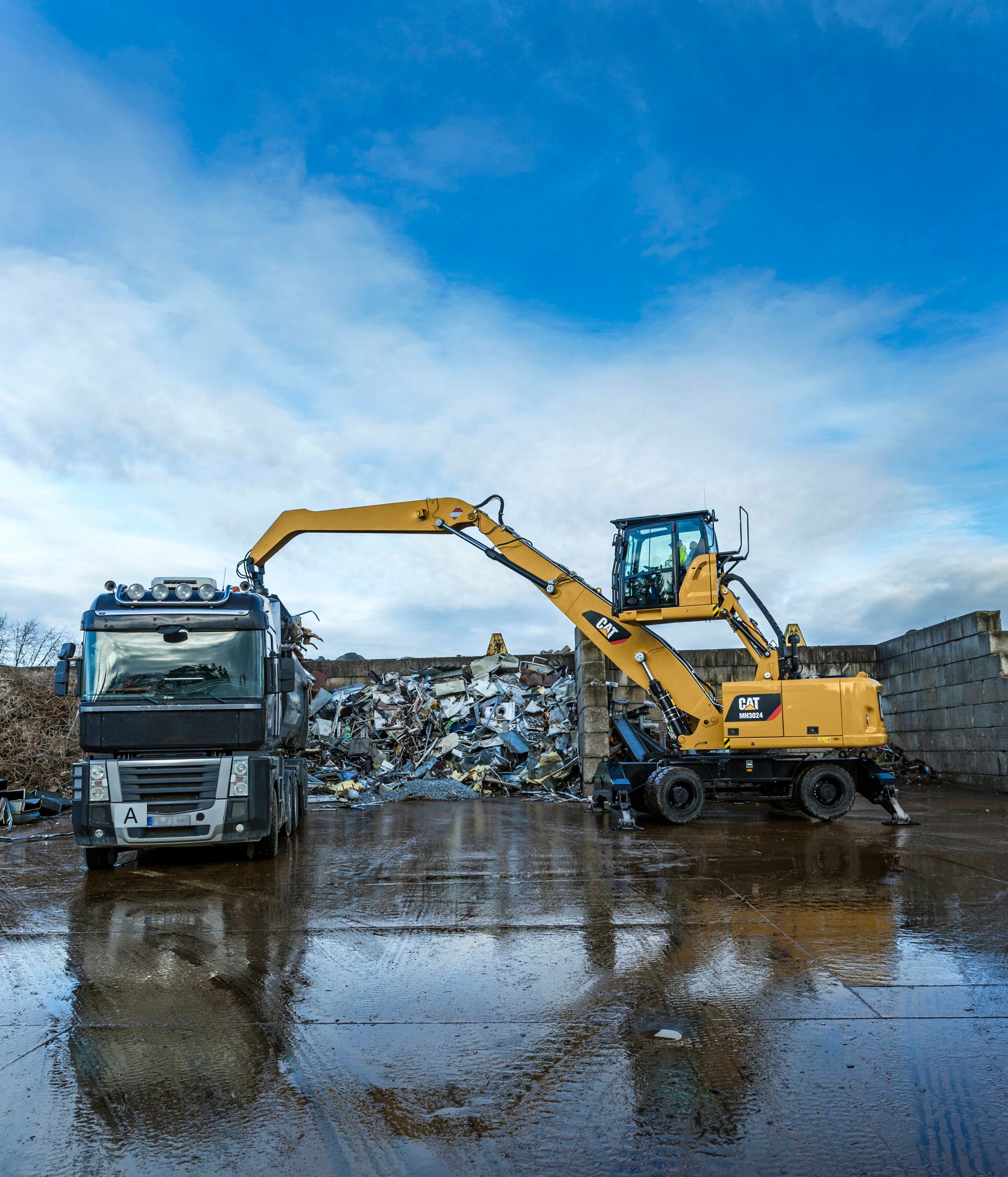

We know that when it comes to material handling equipment, your success depends on productivity and low operating costs. The MH3024 is a purpose-built material handler, designed for industrial and recycling applications that call for safe, quality and reliable products.
Descriere
+
-
Engine
| Engine Model | Cat C7.1 ACERT |
| Emissions | Tier 4 Final/Stage IV |
| Maximum Gross - ISO 14396 | 129.4 kW (174 hp [176 hp/PS*]) |
| Displacement | 7.01 l |
| Maximum Net Power - SAE J1349/ISO 9249 | 126 kW (169 hp [171 hp/PS*]) |
| Stroke | 135 mm |
| Maximum Torque - 1,400 rpm | 830 N·m |
| Cylinders | 6 in-line |
| Bore | 105 mm |
| Note | *Metric values. |
Weights
| Operating Weight | 22 330-27 000 kg (49,229-59,525 lb) |
| MH Push Blade | 675 kg |
| Sticks - Straight (4800 mm) | 1265 kg |
| Sticks - Drop Nose (5900 mm) | 1080 kg |
| Counterweights - Optional | 5200 kg |
| Counterweights - Standard | 4100 kg |
| Note | *Operating weight is with solid tires, optional counterweight, MH undercarriage, fuel tank, operator and work tool, 1400 kg (3,086 lb). Weight varies depending on configuration. |
| Sticks - Drop Nose (4900 mm) | 860 kg |
SPECIFICATIONS
| With MH Boom (6800 mm/22'4") - MH Undercarriage and Drop Nose Stick | 25770 kg |
| With MH Boom (6800 mm/22'4") - MH Undercarriage and Straight Stick | 26150 kg |
| With MH Boom (6800 mm/22'4") - Standard Undercarriage and Straight Stick | 25220 kg |
Swing Mechanism
| Swing Speed | 9 r/min |
Service Refill Capabilities
| Hydraulic Tank Capacity | 200 l |
| Diesel Exhaust Fluid Tank | 34.5 l |
| Hydraulic System Capacity | 352 l |
| Fuel Tank | 420 l |
| Cooling System | 46.9 l |
Undercarriage
| Axle Clearance - MH Undercarriage | 325 mm |
| Oscillation Axle Angle | ±5 degrees |
Transmission
| Maximum Travel Speed | 25 km/h |
| Creeper Speed - 2nd Gear | 12 km/h |
| Maximum Travel Speed - 2nd Gear | 25 km/h |
| Maximum Gradeability (25 000 kg/55,115 lb) | 60% |
Working Ranges - Without Work Tool: MH Boom (6800 mm/22'4
| Maximum Reach | 11435 mm |
| Maximum Depth | 1820 mm |
| Maximum Reach | 12485 mm |
| Maximum Height | 12425 mm |
| Maximum Depth | 2925 mm |
| Maximum Height | 13300 mm |
| Maximum Depth | 1920 mm |
| Maximum Reach | 11530 mm |
| Maximum Height | 12505 mm |
Hydraulic System - Maximum Pressure
| Implement Circuit - Normal | 35000 kPa |
| Travel Circuit | 35000 kPa |
| Implement Circuit - Heavy Lift | 37000 kPa |
| Swing Mechanism | 31000 kPa |
| Auxiliary Circuit - High Pressure | 35000 kPa |
| Auxiliary Circuit - Medium Pressure | 21000 kPa |
Hydraulic System - Maximum Flow
| Implement/Travel Circuit | 359 l/min |
| Auxiliary Circuit - Medium Pressure | 49 l/min |
| Swing Mechanism | 118 l/min |
| Auxiliary Circuit - High Pressure | 250 l/min |
Maximum Dimensions - Approximate
| Maximum Shipping Height* | 3635 mm |
| Maximum Shipping Width | 2990 mm |
| Note | *5900 mm (19'4") stick needs to be detached for transportation. |
